FK808 Automatic Bottle Neck Labeling Machine

Short Description:

FK808 label machine is suitable for bottle neck labeling. It is widely used in round bottle and cone bottle neck labeling in food, cosmetics, wine making, medicine, beverage, chemical industry and other industries, and can realize semicircular labeling.

 FK808 labeling machine It can be labeled not only on the neck but also on the bottle body, and it realize a product full coverage labeling, fixed position of product labeling, double label labeling, front and back labeling and the spacing between the front and back labels can be adjusted.

Partially applicable products:

glass bottle neck labeling

Product Detail

Product Tags

FK808 Automatic Bottle Neck Labeling Machine

You can set video sharpness in the lower right corner of the video

Machine Description

FK808 has additional functions to increase options:

① Optional automatic rotary bottling machine.

② It can be directly connected to the production line to realize automatic bottling and improve production efficiency.

③ The optional ribbon coding machine can print production date, expiration date and production batch online, which reduces the bottling process and greatly improves production efficiency.

④ Automatic feeding function (combined with product consideration);

⑤ Automatic material collection function (combined with product consideration);

⑥ Increase other labeling device;

Work Process

working principle: Input Signals from product Sensor ands label sensor are processed by PLC, then PLC outputs signals to control the traction motor and solenoid valve to start positioning labeling.

Labeling Process: Bottle- separating Device→ Bottles are separated one by one to ensure labeling time for each bottle →The product sensor detects the bottle→ PLC receives the signal, air cylinder move forwards, Labeling start→ label-covering completed, air cylinder backwards→ the conveyor belt send the bottles.

Technical Parameters

Parameter Date
Label Specification Adhesive sticker,transparent or opaque
Labeling Tolerance ±1mm
Capacity(pcs/min) 25~60
Suit product size(mm) φ25mm~φ120mm H:25~150;Can be customized
Suit label size(mm) L:20-380;W(H):20-130
Machine Size(L*W*H) 1950*1200*1450(mm)
Pack Size(L*W*H) 2000*1250*1500(mm)
Voltage 220V/50(60)HZ;Can be customized
Power 1050W
N.W(KG) ≈230.0
G.W(KG) 2255.0
Label Roll ID:Ø76mm; OD:≤260mm

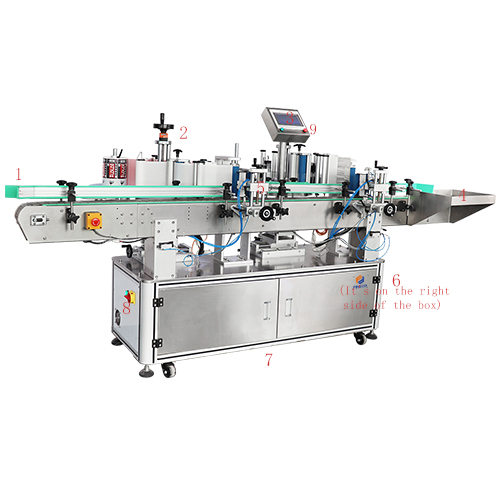

neck label applicator
No. Structure Function
1 Double Side Guardrails keep the bottles goes straightly, can be adjusted according to the diameters of the bottles.
2 Labeling Head core of the labeler,including label-winding and driving structure.
3 Touch Screen operation and setting parameters
4 Collection Plate collect the labeled products.
5 Bottle-fixing Cylinder drive the fixing device to fix product while labeling
6 Filter filter water and impurities
7 Electric Box place electronic configurations
8 Main Switch Open the machine
9 Emergency Stop stop the machine if it runs wrong
10 Rotary Roller driven by a motor to rotate product while labeling
11 Label-peeling Plate peel label from the release paper
12 Spacing Wheel makes every 2 products keep certain distance
13 Adjusters used to adjust labeling position

Label Production Requirements

1. The gap between the label and the label is 2-3mm;

2. The distance between the label and the edge of the bottom paper is 2mm;

3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);

4. The inner diameter of the core is 76mm, and the outer diameter is less than 280mm, arranged in a single row.

The above label production needs to be combined with your product. For specific requirements, please refer to the results of communication with our engineers!

plastic round bottle labeling machine
wine bottle labeling machine


1 ) Control System: Japanese Panasonic control system, with high stability and extremely low failure rate.

2 ) Operation System: Color touch screen, directly visual interface easy operation.Chinese and English available . Easily to adjust all electrical parameters and have counting function, which is helpful for production management.

3) Detection System: Using German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor, which are sensitive to label and product, thus ensure high accuracy and stable labeling performance. Greatly saves labor.

4) Alarm Function: The machine will give an alarm when problem occur, such as label spill, label broken, or other malfunctions.

5) Machine Material: The machine and spare parts all use material stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.

6) Equip with a voltage transformerto adapt to local voltage.
