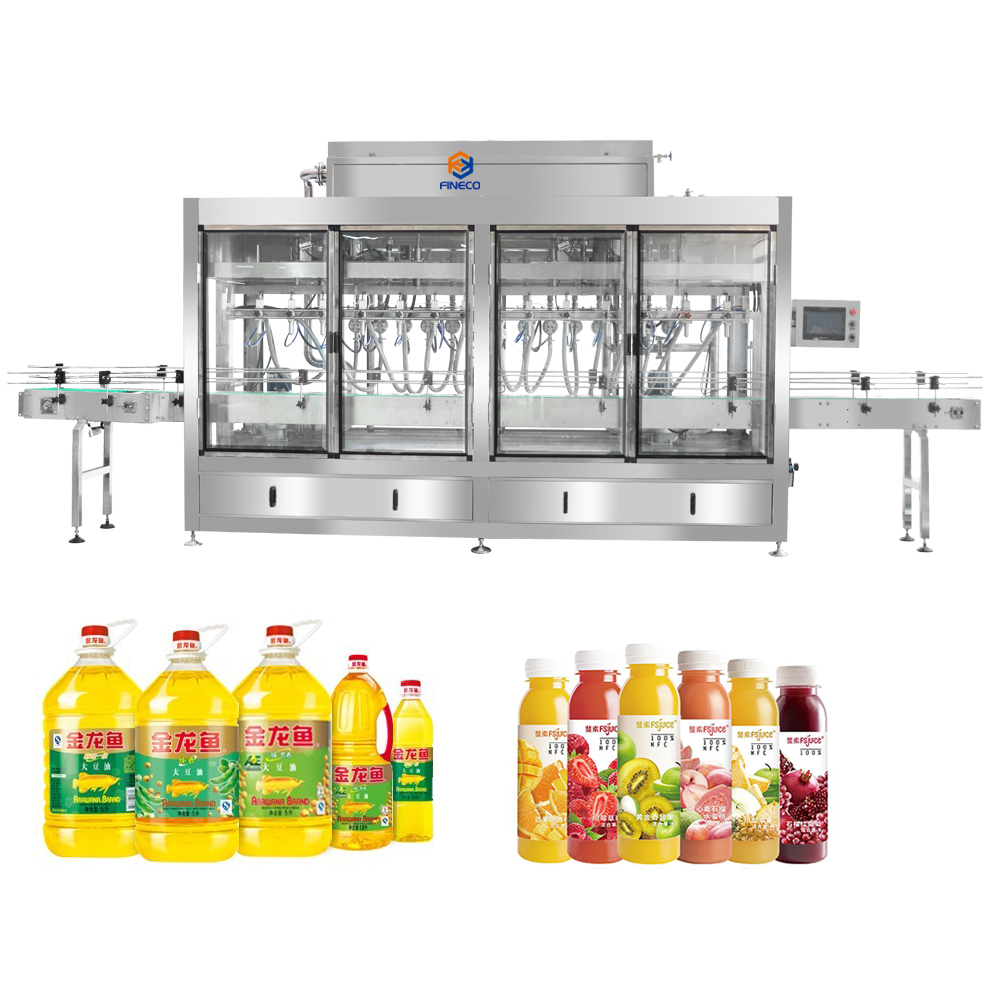

FKF805 Flow Meter Precise Quantitative Filling Machine

Short Description:

FKF805 Flow Meter Precise Quantitative Filling Machine. The filling head and flow meter is made of 316L stainless steel, Can hold a variety of corrosive low viscosity particle free liquids. The machine has suction structure, It has the function of anti-drip, anti-splash and anti-wire drawing. To meet customers’ different sizes and types of bottle filling needs.The machine can be used for regular round, square and flat bottles.

FKF805 Can adapt to the liquid filling of a large part of the product, such as pharmaceutical (oil, alcohol, alcohol, eye drops, syrup), chemicals (solvent, acetone), oil (edible oil, essential oil), cosmetics (toner, makeup remover, spray), food (can withstand 100 degrees of high temperature, such as milk, soy milk), drinks (juice,Fruit wine), condiments (soy sauce, vinegar, sesame oil) and other non-granular liquid;High-low foam liquid (care solution, detergent). No matter large or small volume can be filled.

Applicable products(example):

oil filling machine     milk filling machine




Product Detail

Product Tags

FKF805 Flow Meter Precise Quantitative Filling Machine

You can set video sharpness in the lower right corner of the video

Machine Description

①FkF805 is suitable for all kinds of Paste, high viscosity liquid, low viscosity liquid, water and other filling, Filling capacity:0.38~6L (If it is larger than 6 liters, it needs to be customized).

②FKF805 The way of debugging is very simple, you just need to change different products, the height of the filling head up or down to match the product, and then on the touch screen input to fill the capacity and product spacing, very user-friendly.

③FKF805 It can be customized to your needs.

④We can provide you with matching capping machine and labeling machine, and Make a production line directly for you



Work Process

Start the machine at the touch screen, and when the bottle flows under the filling head, the filling head moves down and starts filling. After filling, the filling head moves, and the reflow function starts, and the material in the filling head flows back to the pipeline, a filling process is completed.

Liquid requirements

1. The machine can not fill particles and powder;

2. Some very thick paste can not be filled, such as lipstick, lipstick needs to use another filling machine to complete filling.;

nice filling machine

Machine parameter

Parameter Data
Filling material Materials other than powders, particles and very viscous liquids
Filling Tolerance ±l%
Filling Capacity(L)
0.38 ~ 6
Suit bottle size(mni) According to your need;
Speed(bottle/min) One filling head : 175~250;(Determine how many filling heads are used in the machine according to your production and requirements)
Quantitative way Flowmeter
Machine Size(mm) Listed in the next table
Voltage 380V/50(60)HZ;(Can be customized)
Power(KW) 5
N.W (KG) 2000
G.W(KG) 2300
Additional functionality Anti-drip, anti-splash and anti-wire drawing; High precision; Will not corrode

Filling head quantity and machine size

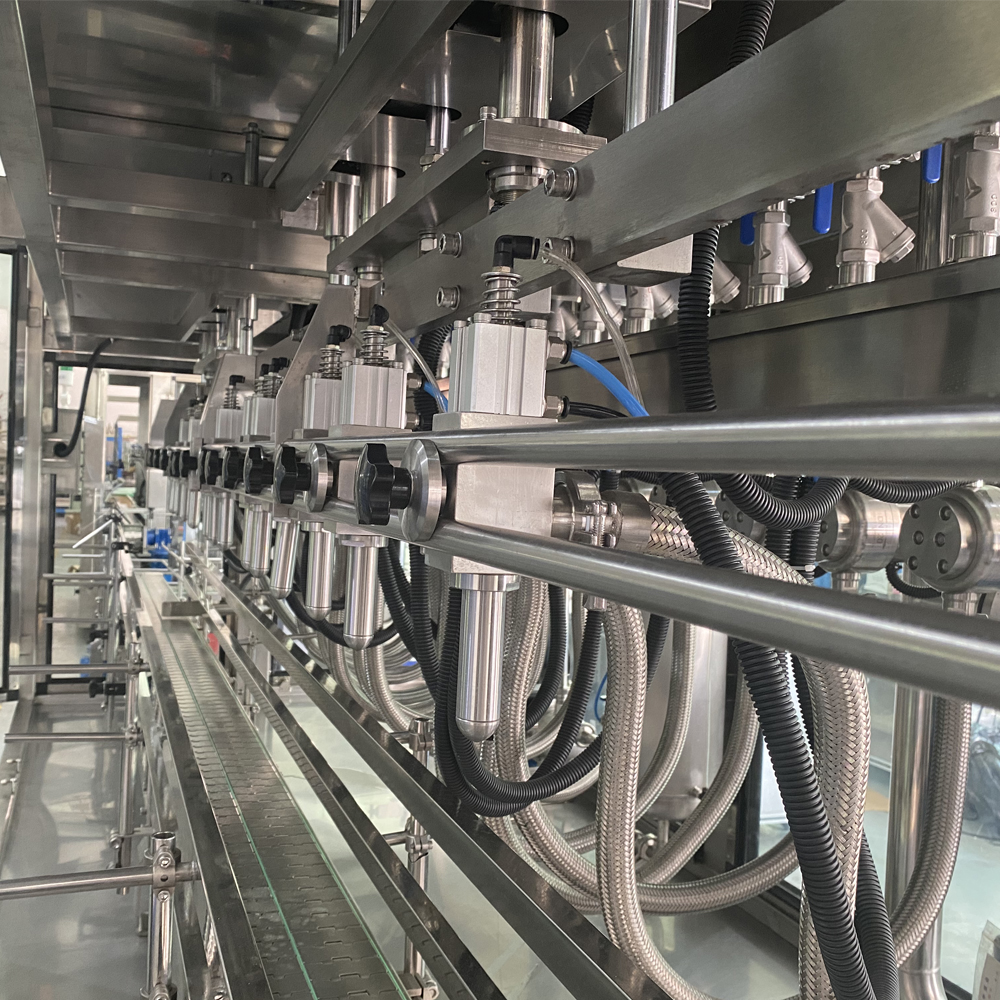

filling head

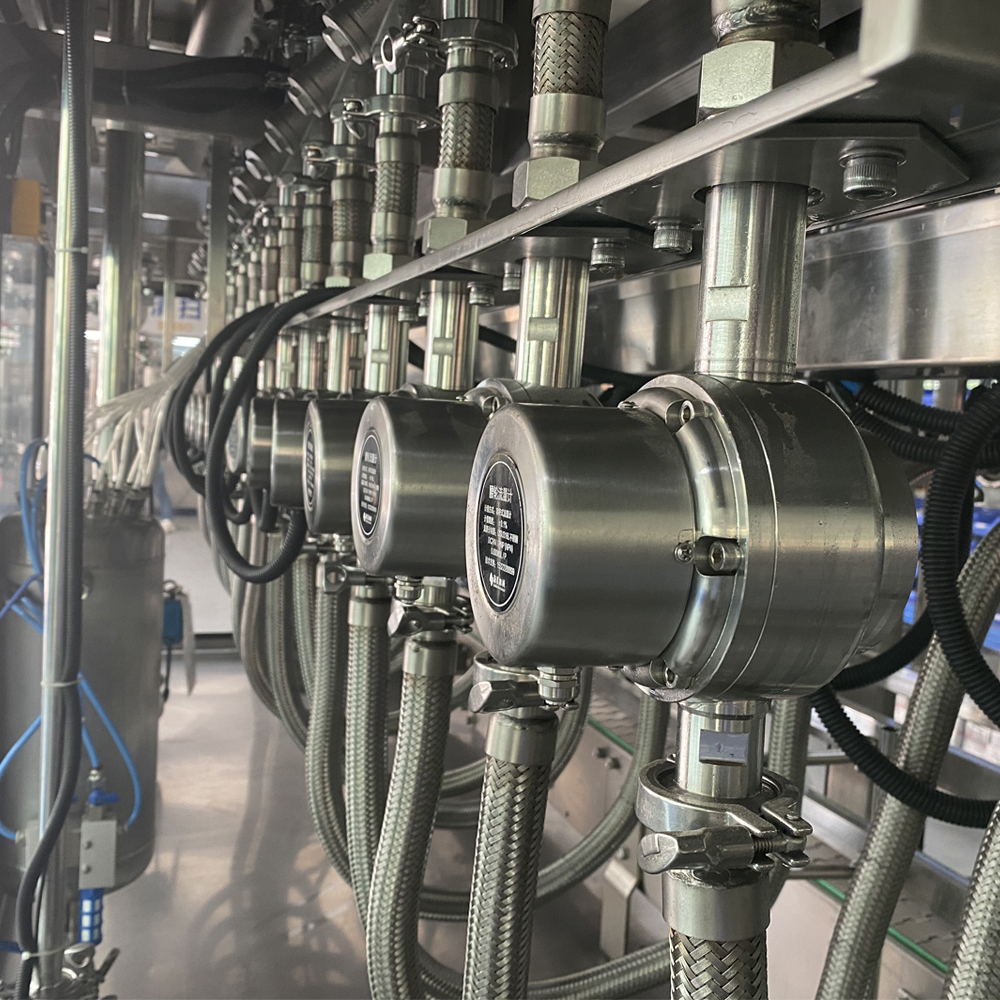

flowmeter
Number of filling head  Filling Speed(bottle/h)  Machine Size(L*W*H) Conveyor Size(mm)
2 350-500(2L bottle test) 680*960*2235(mm) 3000
4 700-1000(2L bottle test) 1280*1540*2235(mm) 6000
6 1000-1500(2L bottle test) 1720*1540*2235(mm) 8000
8  1500-2200(2L bottle test) 1880*1540*2235(mm) 9000
10  1400-1600(5L bottle test) 2200*1540*2235(mm) 10000
12  1600-1800(5L bottle test) 2880*1540*2235(mm) 10000



Features:

1 ) Control System: Japanese Panasonic control system, with high stability and extremely low failure rate.

2 ) Operation System: Color touch screen, directly visual interface easy operation.Chinese and English available. Easily to adjust all electrical parameters and have counting function, which is helpful for production management.

3) Detection System: Using German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor, which are sensitive to label and product, thus ensure high accuracy and stable labeling performance. Greatly saves labor.

4) Alarm Function: The machine will give an alarm when problem occur, such as label spill, label broken, or other malfunctions.

5) Machine Material: The machine and spare parts all use material stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.

6) Equip with a voltage transformerto adapt to local voltage.

FAQ:

Q: Are you the factory?

A: We are Manufacturer located in Dongguan,China.Specialized in labeling machine and packaging industry for more than 10 years,have thousands of customer cases,welcome for factory inspection.

Q: How to make sure your labeling quality is good?

A: We are using strong and durable mechanical frame and premium electronic parts such as Panasonic,Datasensor,SICK...to make sure stable labeling performance.What’s more,our labelers approved CE and ISO 9001 certification and have patent certificates.Besides,Fineco was awarded Chinese“New High-Tech Enterprise” in 2017.

Q: How many machines your factory have?

A: We produce standard and custom-made adhesive labeling machine.By automation grade,there are semi automatic labelers and automatic labeler;By product shape,there are round products labelers,square products labelers,irregular products labelers,and so on.Show us your product, labeling solution will be provided accordingly.

Q: What’s your quality assurance terms?

Fineco strictly implement responsibility of the post,

1)When you confirm order,the design department will send the final design for your confirmation before production.

2)The designer will follow the processing department to ensure each mechanical parts are processed correctly and timely.

3)After all parts done,designer transfer responsibility to the Assembly Dept,which need to assemble the equipment on time.

4)Responsibility transferred to Adjustment Dept with the assembled machine.Sales will check the progress and feedback to customer.

5)After customer’s video checking/factory inspection,sales will arrange the delivery.

6)If customer have problem during application,Sales will ask the After-sales Dept to solve it together.

Q: Confidentiality Principle

A: We will keep All Our Clients’ Design,Logo,and Sample on our archives,and never show to the similar clients.

Q: Is there any installation direction after we received the machine?

A: Generally you can apply the labeler directly once receive it,because we have adjust it well with your sample or similar products.Besides,instruction manual and videos will be provided.

Q: What label material does your machine use ?

A: Self-adhesive sticker.

Q: Which kind of machine can meet my labeling requirement?

A: Pls supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.

Q: Is there any insurance to guarantee that I will get the right machine I pay for?

A: We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection, on-time shipment protection and 100% safe payment protection.

Q: How could I get the spares of machines?

A: Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
