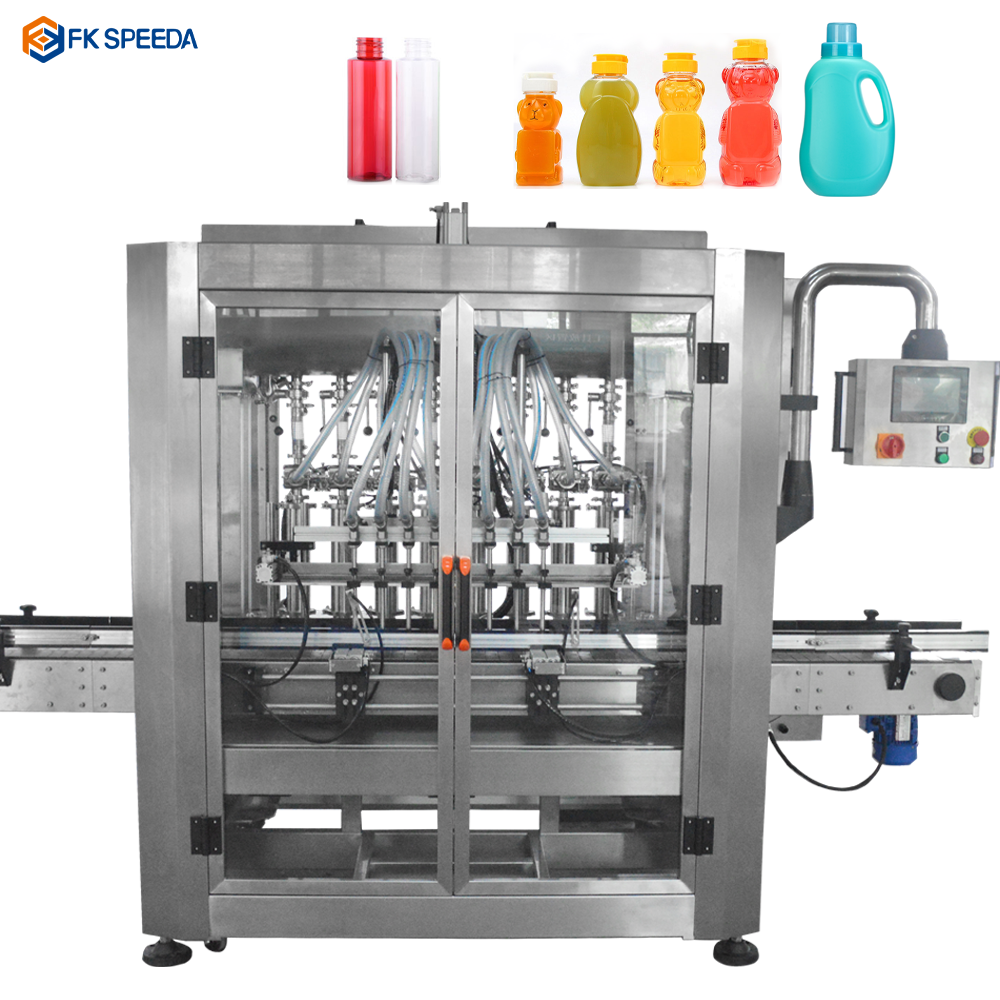

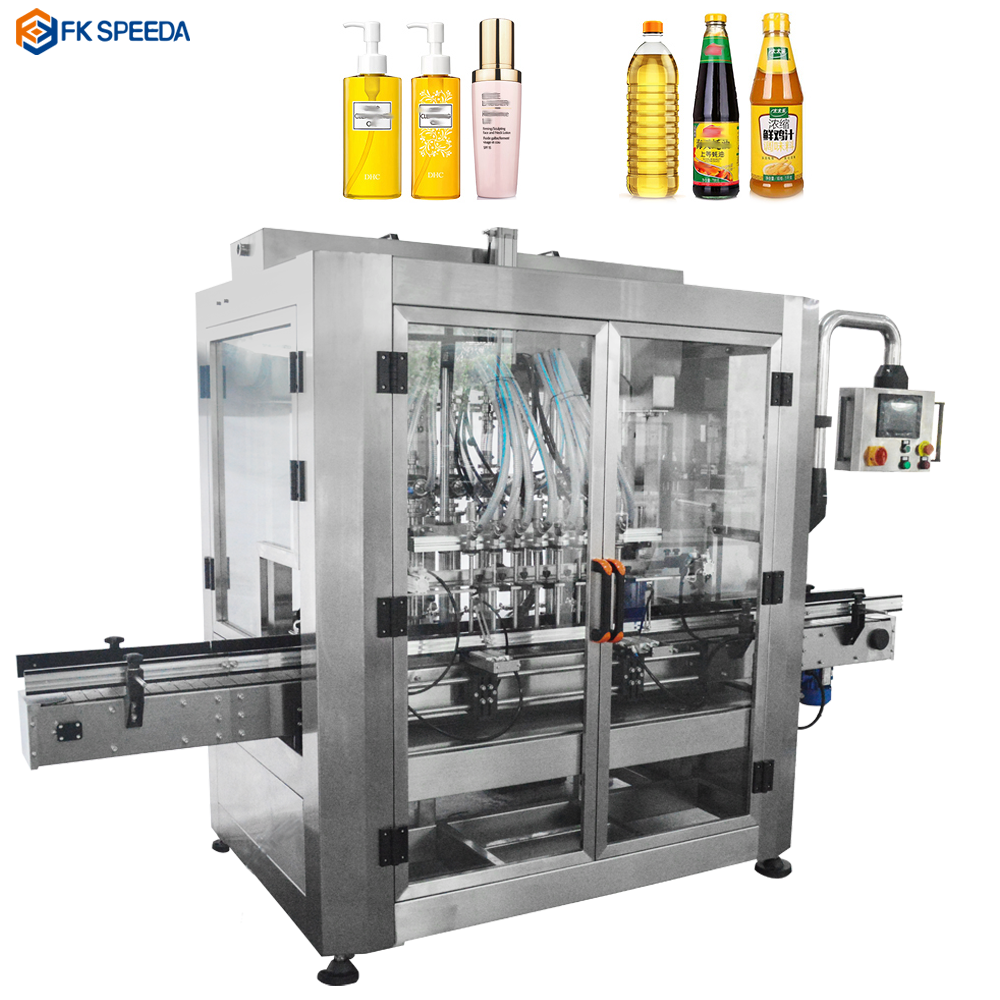

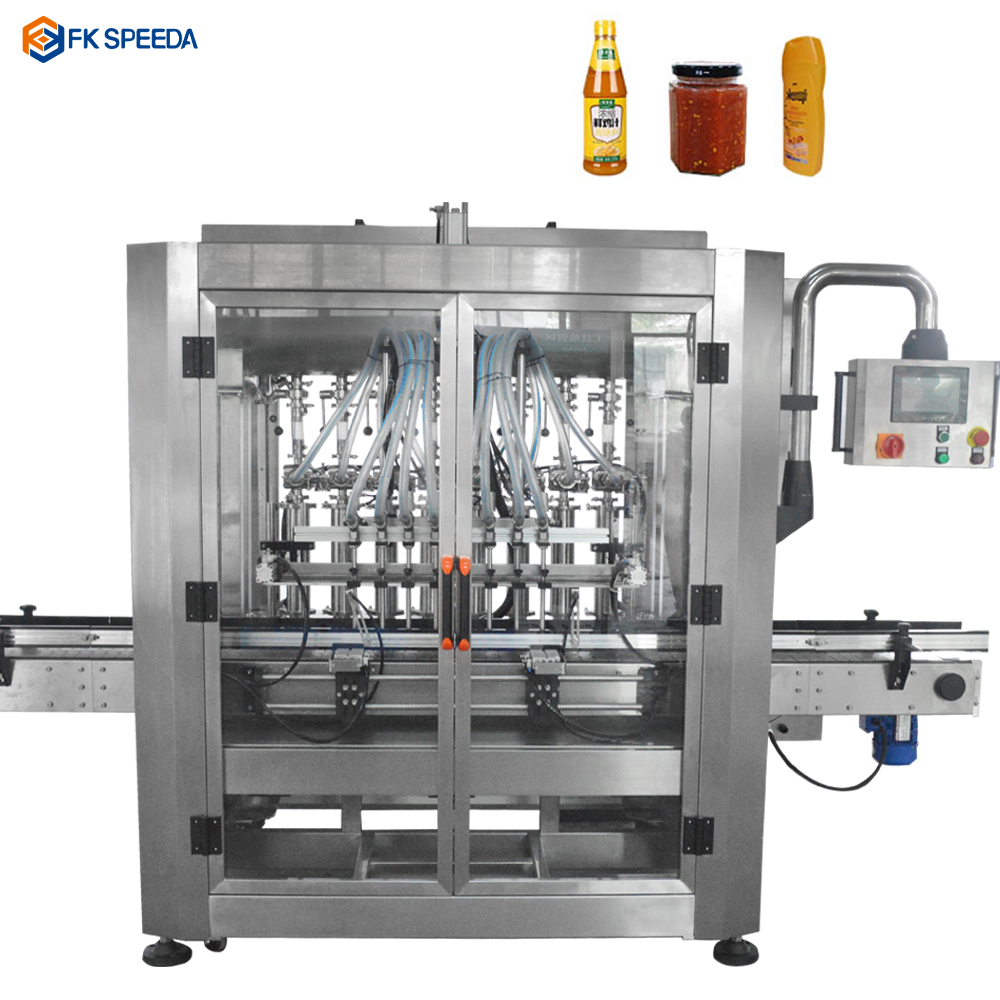

Automatic 8 heads piston filling machine (Support customization)

Short Description:

Automatic viscous liquid filling machine

applied range:



The automatic piston filling machine adopts the principle of plunger quantitative filling. Bottle feeding, positioning, filling and discharging are all automatically controlled by PLC, which conforms to GMP standards. It is suitable for liquid filling of medicine, food, daily chemicals, pesticides and fine chemicals.Widely used in filling various oils and viscous liquids such as :  paint,edible,oil,honey,cream,paste,sauce,lubricating oil, daily,chemicals and other liquid products.

Support customization.

活塞灌装样品 直流灌装样品




Product Detail

Product Tags

4-8 nozzle Automatic piston filling machine

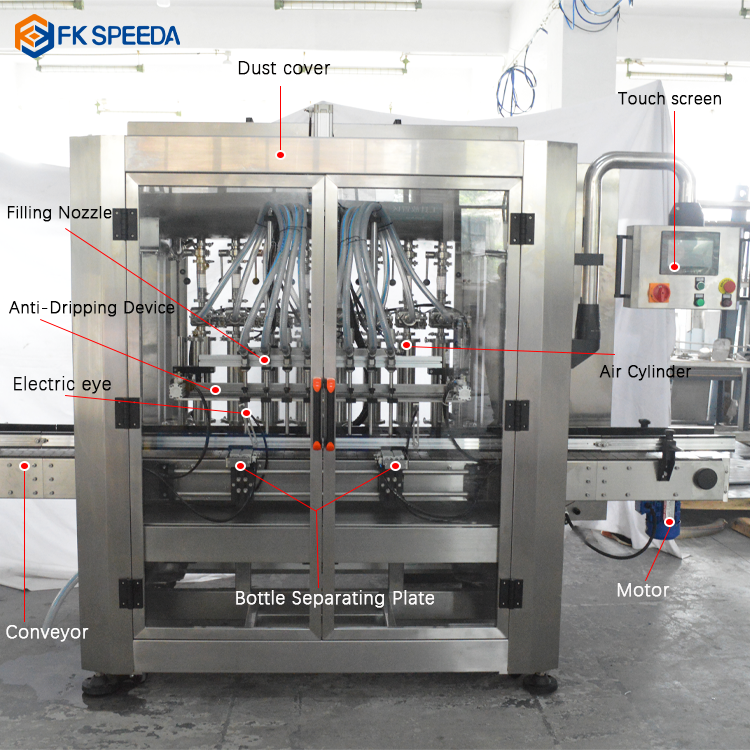

活塞式

Machine Description

1.Simple structure in linear type ,easy in installation and maintenance.

2.Piston filling method, accurate and stable, suitable for thick material.
3.The filling range and speed can be designed according to user needs to design different filling head number.
4.Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.WEINVIEW touchscreen,MITSUBISHI PLC,CHNT switch,etc.
5.The whole machine is made of SS304 material,can meet the requirement of GMP.
6.Can be used for filling containers of different capacities and shapes without the need for additional replacement parts.
7.It can be used alone or connected to production lines, and can be combined with capping machine, labeling machine, date printer,etc.
8.Easy to clean,all material contact part can be quick disassemble and cleaning.

Machine Parameter

Number of filling heads

4pcs 6pcs 8pcs

 Filling capacity (ML)

50-500ml 50-500ml 50-500ml

Filling speed (BPM)(BPM)

16-24 pcsmin 24-36pcsmin 32-48pcsmin

 Power supply (VAC)

380V/220V 380V/220V 380V/220V

 Motor power (KW)

2.8 2.8 2.8

 Dimensions(mm)

2000x1300x2100 2000x1300x2100 2000x1300x2100

 Weight (KG)

450 550 650

Machine detail Description

活塞灌装详情logo-_01

Product Application

活塞灌装样品

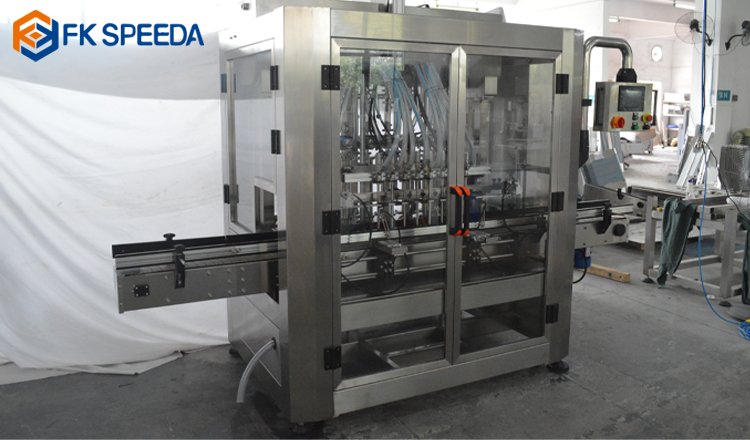

全自动活塞1

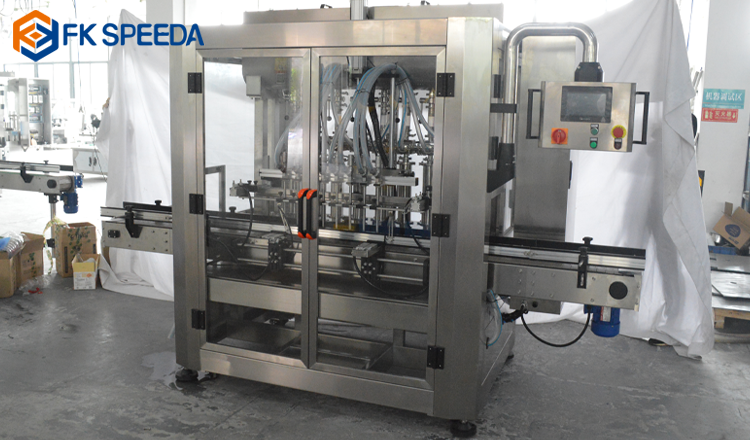

全自动活塞3

PACKING & SHIPPING

出货
