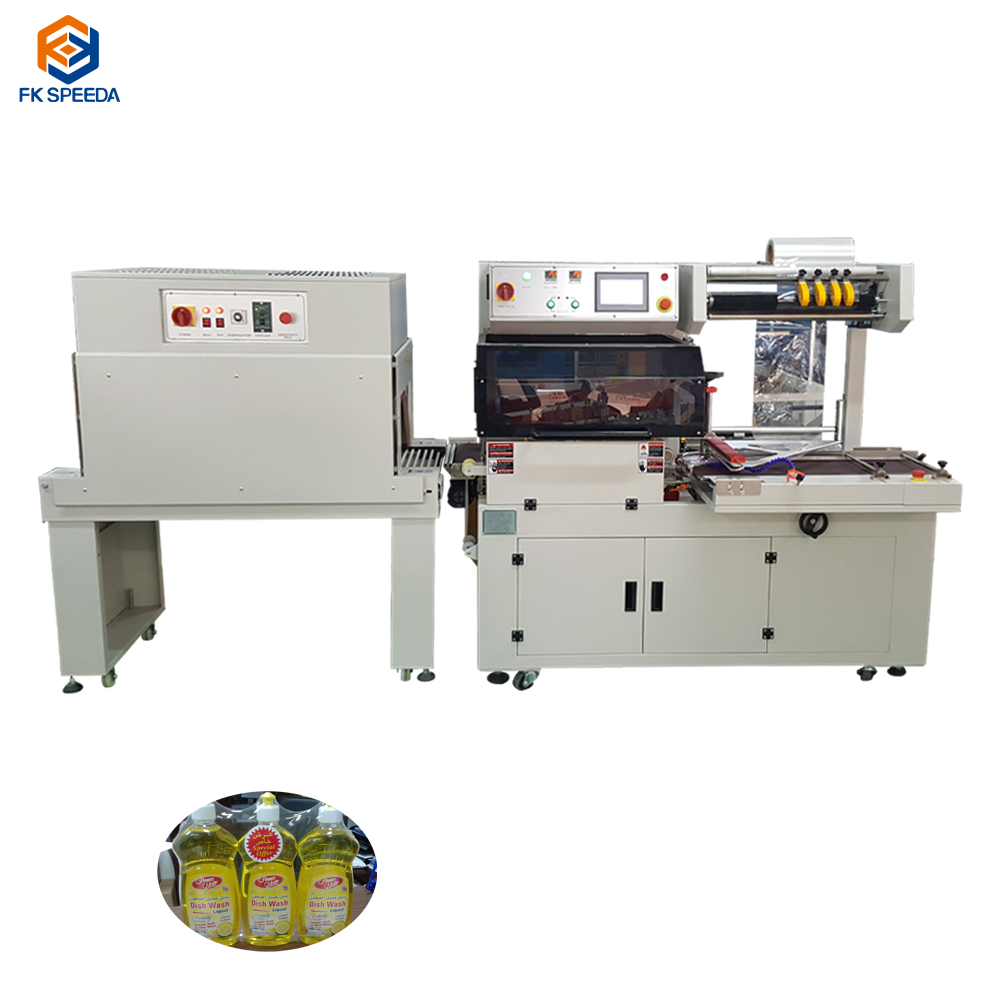

Automatic shrink wrap machine
Short Description:
fully automatic shrink packaging machine including l sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. it is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.
Automatic side seal shrink wrap machines offer a fast and efficient way to shrink wrap your products for distribution. These systems feature full programmable, easy to use interfaces that can store multiple packaging settings. With a variety of shrink film options and in-feed systems these shrink wrap machines are perfect for packaging solutions that package a variety of products..
Machine Parameter
|
Model
|
FK-450
|
FK-550
|
FK-650
|
FK-850
|
|
Max packing size(L)(W+H)mm
|
≤400(H)≤200
|
≤500(H)≤200
|
≤600(H)≤200
|
≤800(H)≤200
|
|
Max sealing size
|
(W+H)≤450mm
|
(W+H)≤550mm
|
(W+H)≤650mm
|
(W+H)≤850mm
|
|
Packing speed
|
15-35bag/min
|
15-35bag/min
|
15-35bag/min
|
15-35bag/min
|
|
Electric supply&power
|
220V/50HZ 1.35KW
|
220V/50HZ 1.35KW
|
220V/50HZ 1.35KW
|
220V/50HZ 2.0KW
|
|
Max Current
|
16A
|
16A
|
16A
|
18A
|
|
Air pressure
|
5.5kg/cm^3
|
5.5kg/cm^3
|
5.5kg/cm^3
|
5.5kg/cm^3
|
|
Weight
|
300kgs
|
350kgs
|
400kgs
|
450kgs
|
|
Dimensions(L*W*H) mm
|
1650*800*1460
|
1810*980*1460
|
2010*1080*1460
|
2510*1480*1460
|
|
Model
|
HY-4525 Shrinkage furnace
|
|
Production speed
|
0-15 M/min
|
|
Bag packing type
|
Thermal ontraction Heat shrinkable
|
|
Packaging film material
|
POF fold film
|
|
Machine operating height
|
750-850mm
|
|
Total power
|
9.6KW
|
|
Voltage
|
380kw 50/60HZ Three phase
|
|
Weight
|
200kgs
|
|
Size (L x W x H)
|
1910x680x1330mm 1480x450x230 (Furnace road)
|
