High Speed Labeling Head(0-250m/min)

Short Description:

Assembly Line High Speed Labeling Head (China’s first research and development,Only one in China)

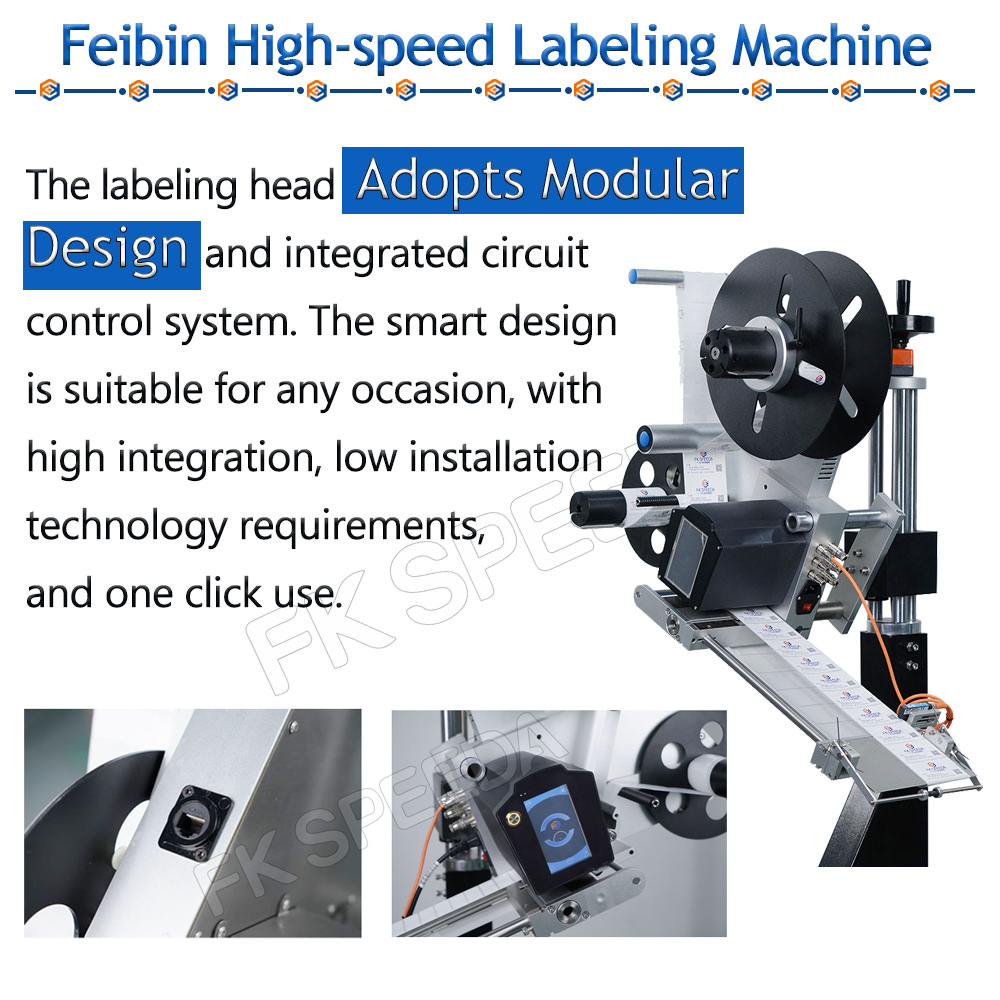

Feibin High speed labeling head adopts modular design and integrated circuit control system. The smart design is suitable for any occasion, with high integration, low installation technology requirements, and one click use.Machine configuration: Machine control (PLC) (Feibin R & D); Servo motor (Feibin R & D); Sensor (Germany Sick); Object sensor (Germany Sick)/Panasonic; Low voltage (Adaptation)

Send email to us

Product Detail

Product Tags

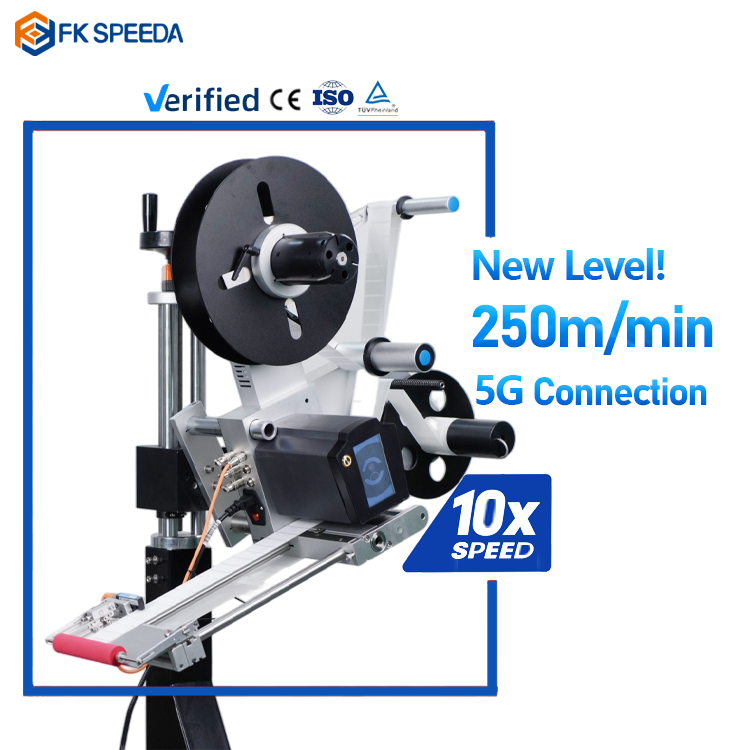

FB-GS80T High Speed Labeling Machine Head

You can set video sharpness in the lower right corner of the video

https://youtube.com/shorts/g8OIOUaj8ks?si=xuyboOv9NrixPtNb

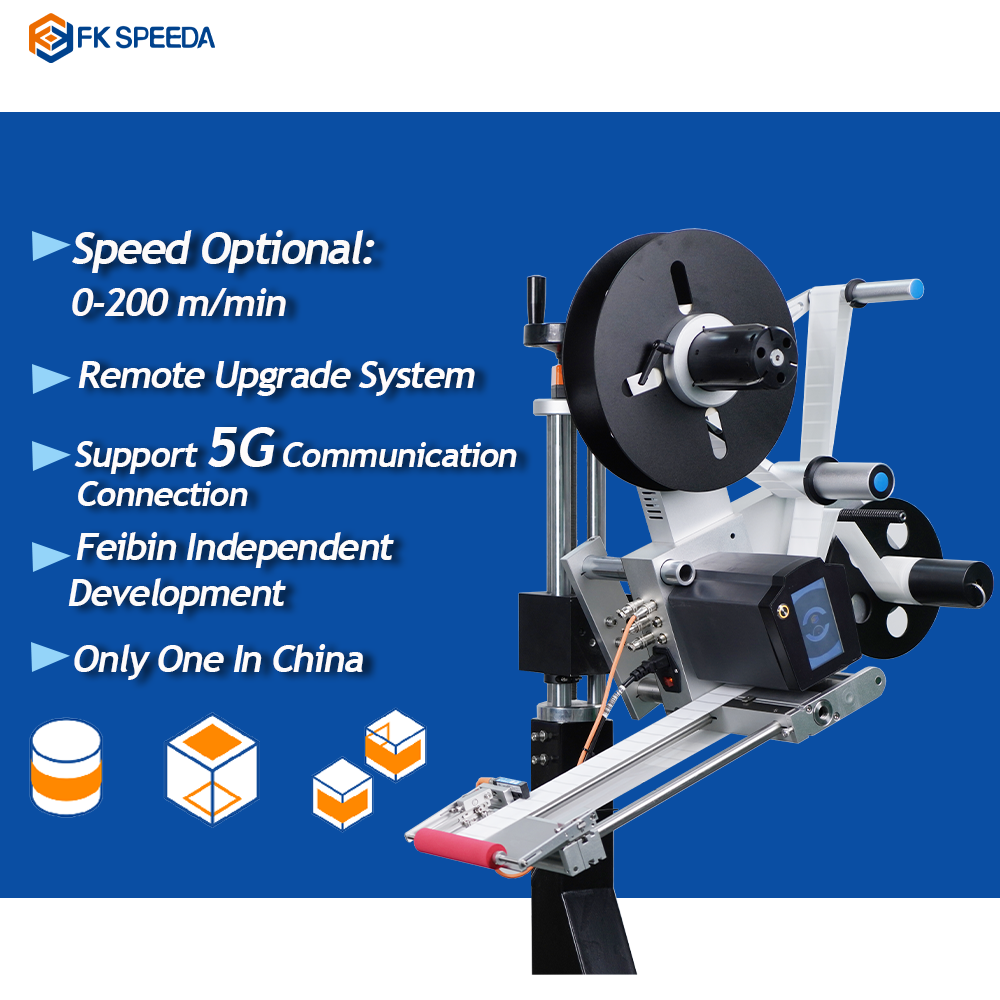

Characteristic:

*Speed Optional:0-250 m/min;

*Remote Upgrade System

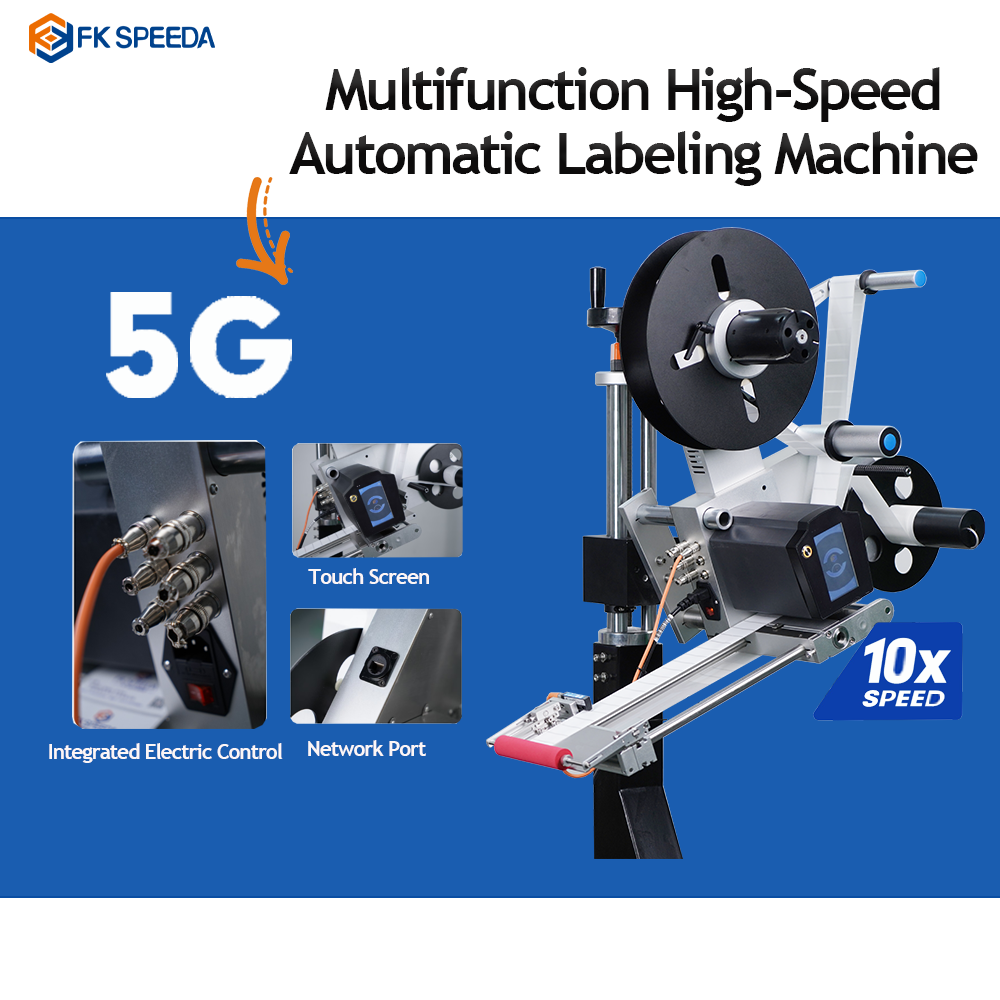

*Support 5G communication Connection

*Feibin Independent Development

*Only One In China

Label specifications	10x 10 mm ~160 x 400mm
Max back paper width	160 mm
Label roll diameter	300 mm (Winding: inward/outward）
Label Reel	Reel：76 mm (Optional: 40 mm、45 mm)
Labeling speed	Optional: 0 - 30 / 50 / 80 /100/ 150 / 250 m/min
Labeling accuracy	± 0.5 mm
Installation method	Left-hand unit • right-hand unit
Label sensor	Fork sensors UF
Labeling method	Adjustable: special flattening brush for label stripping plate; Flattening roller or spring flattening roller; Optional: swinging label stripper
controller	Integrated in labeling machine
Power	220VAC ±10%, 50 / 60 Hz；

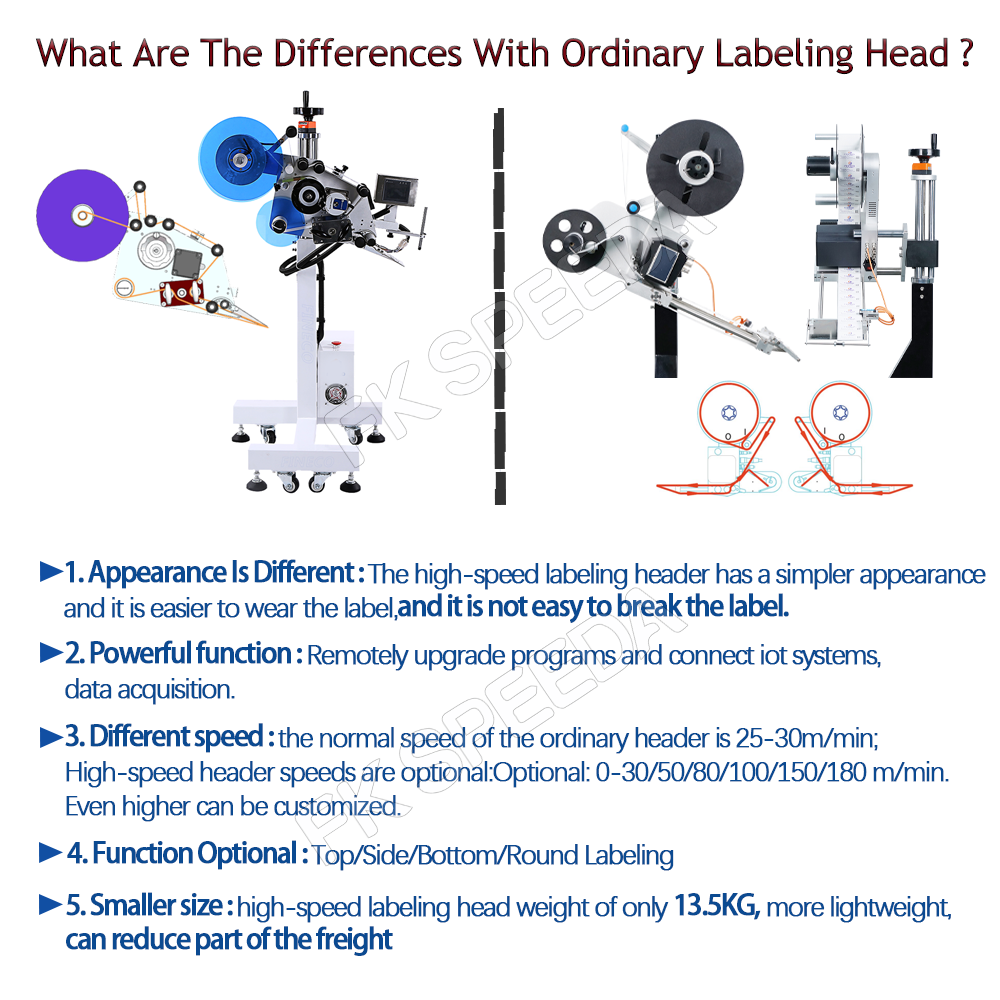

What Are The Differences With Ordinary Labeling Head ?

1.Appearance ls Different:The high-speed labeling header has a simpler appearanceand it is easier to wear the label,and it is not easy to break the label.

2. Powerful function : Remotely upgrade programs and connect iot systems,data acquisition.

3. Different speed : the normal speed of the ordinary header is 25-30m/min;High-speed header speeds are optional:Optional: 0-30/50/80/100/150/250 m/min.Even higher can be customized.

4. Function Optional : Top/Side/Bottom/Round Labeling

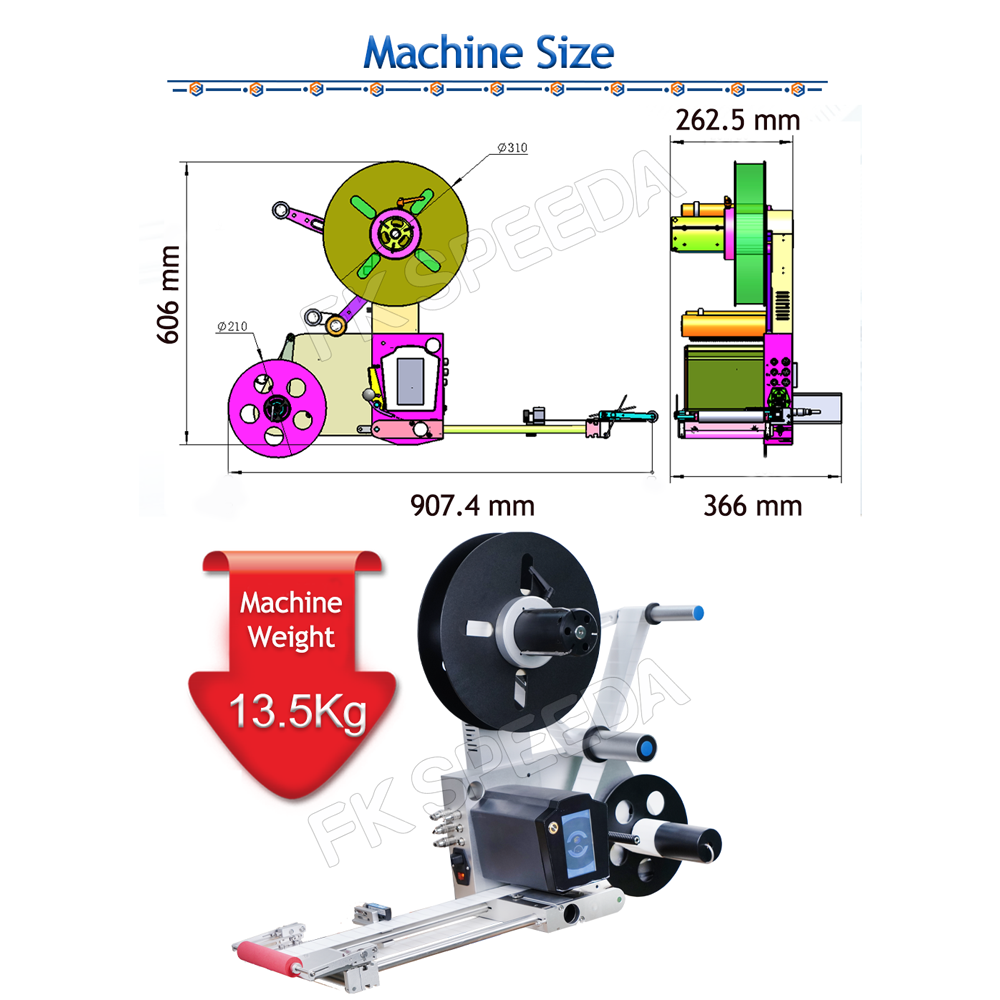

5. Smaller size : high-speed labeling head weight of only 13.5KG, more lightweight,can reduce part ofthe freight

What Are Our Advantages?

1.This high-speed labeling head patent belongs to Feibin,with independent intellectual property rights!

2.The main structure:control motherboard, servo motor, are all developed by Feibin.

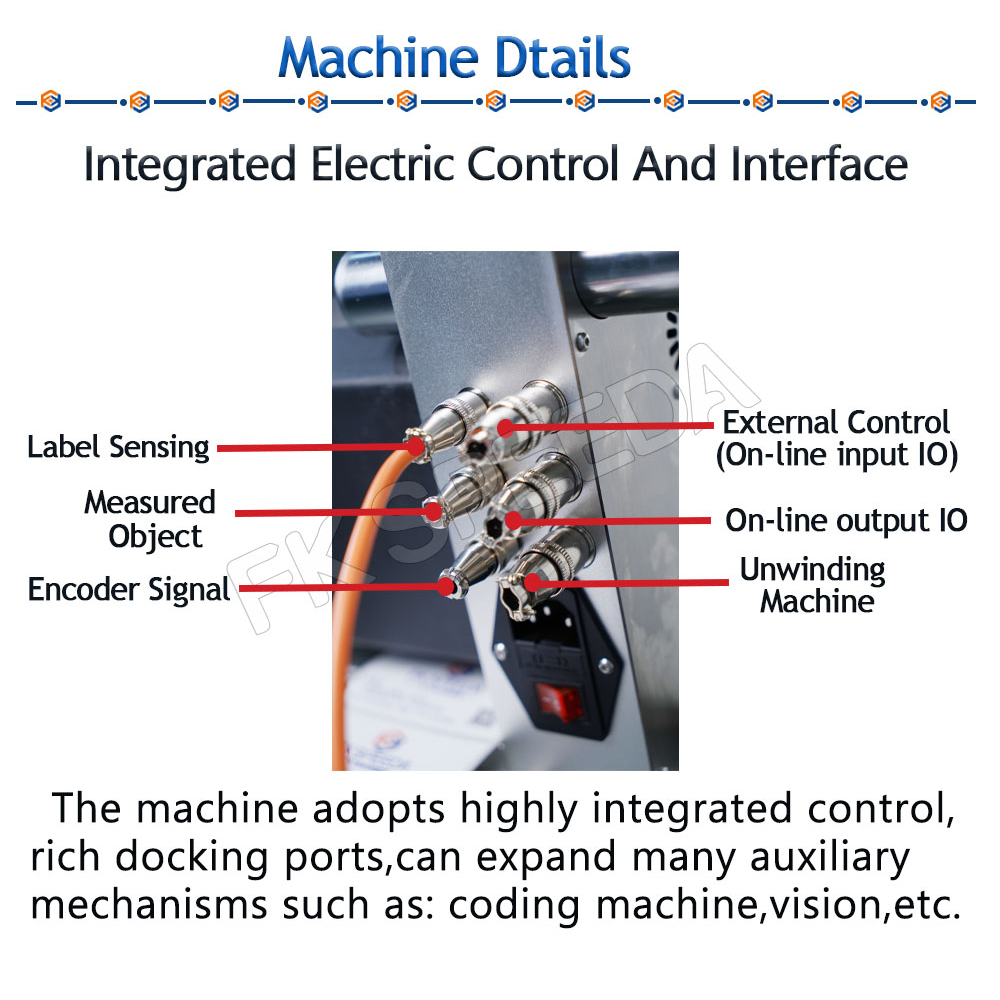

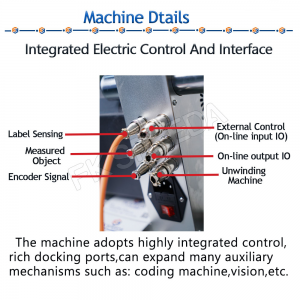

3.The machine adopts a highly integrated control, docking ports arerich, can expand a lot of auxiliary mechanisms such as: coding machine, vision, etc.

4.Reliable, compact, highly modular no external electric box, more convenient docking.

5.Improve production efficiency, reduce costs, to achieve better packaging effect.

6.Labeling head mechanism is simple, one-click start, automatic speed,easy to understand

7.More humanized and intelligent, lower requirements for debugging and operating personnel;

8.Labeling head mechanism is simple, one-click start, automatic speed easy to understand.

9.There is Only One high-speed label header of this design in China.
