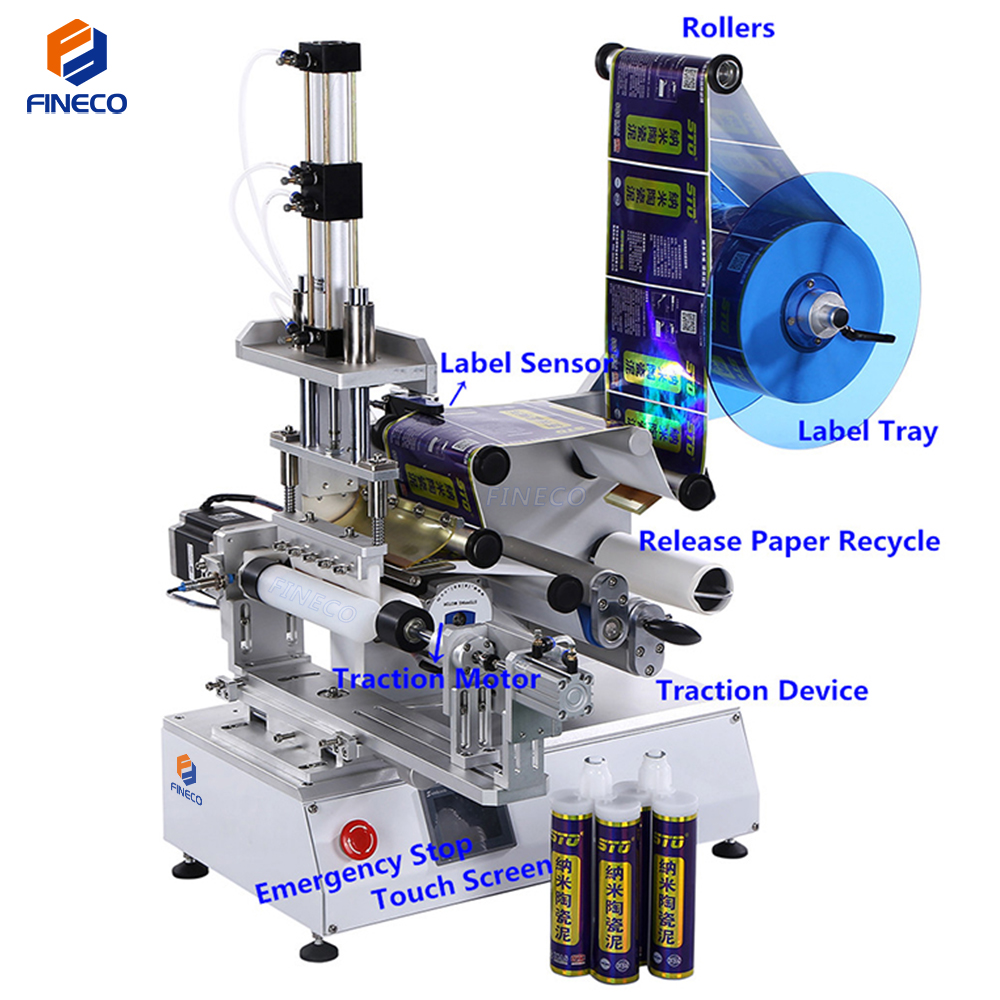

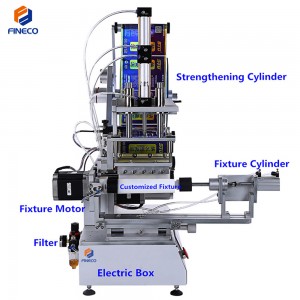

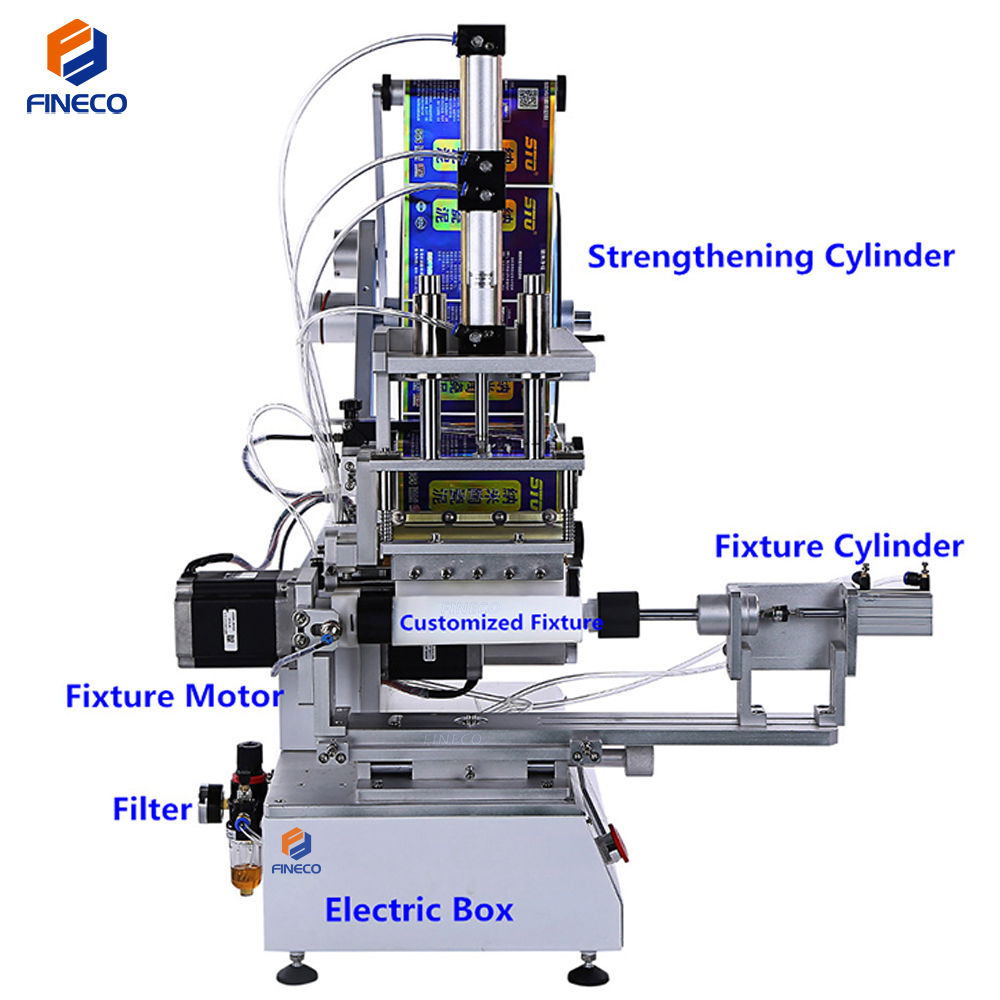

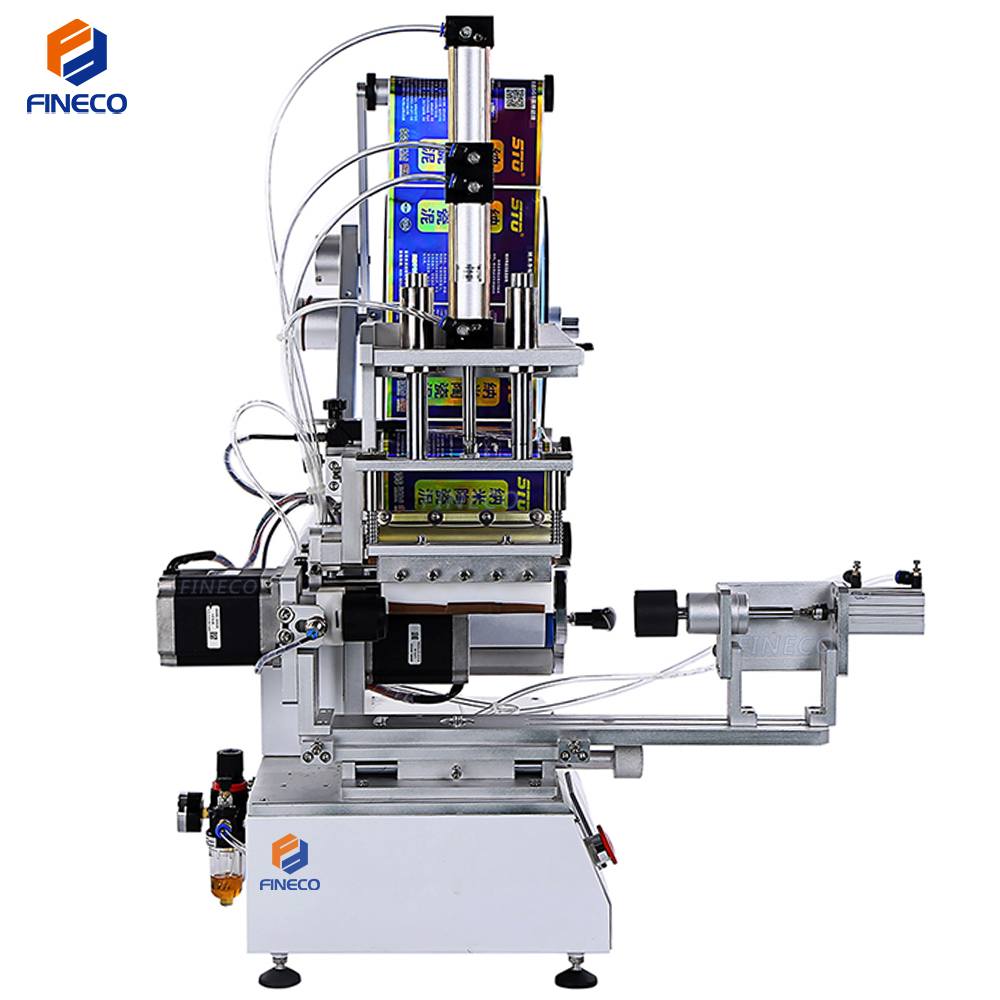

FK616A Semi Automatic double-barrelled bottle Sealant Labeling Machine

Short Description:

① FK616A adopts a unique way of rolling and pasting, which is a special labeling machine for sealantsuitable for AB tubes and double tubes sealant or similar products.

② FK616A can achieve full coverage labeling, partial accurate labeling.

③ FK616A has additional functions to increase: configuration code printer or ink-jet printer, when labeling, print clear production batch number, production date, effective date and other information, coding and labeling will be carried out simultaneously, improve efficiency.

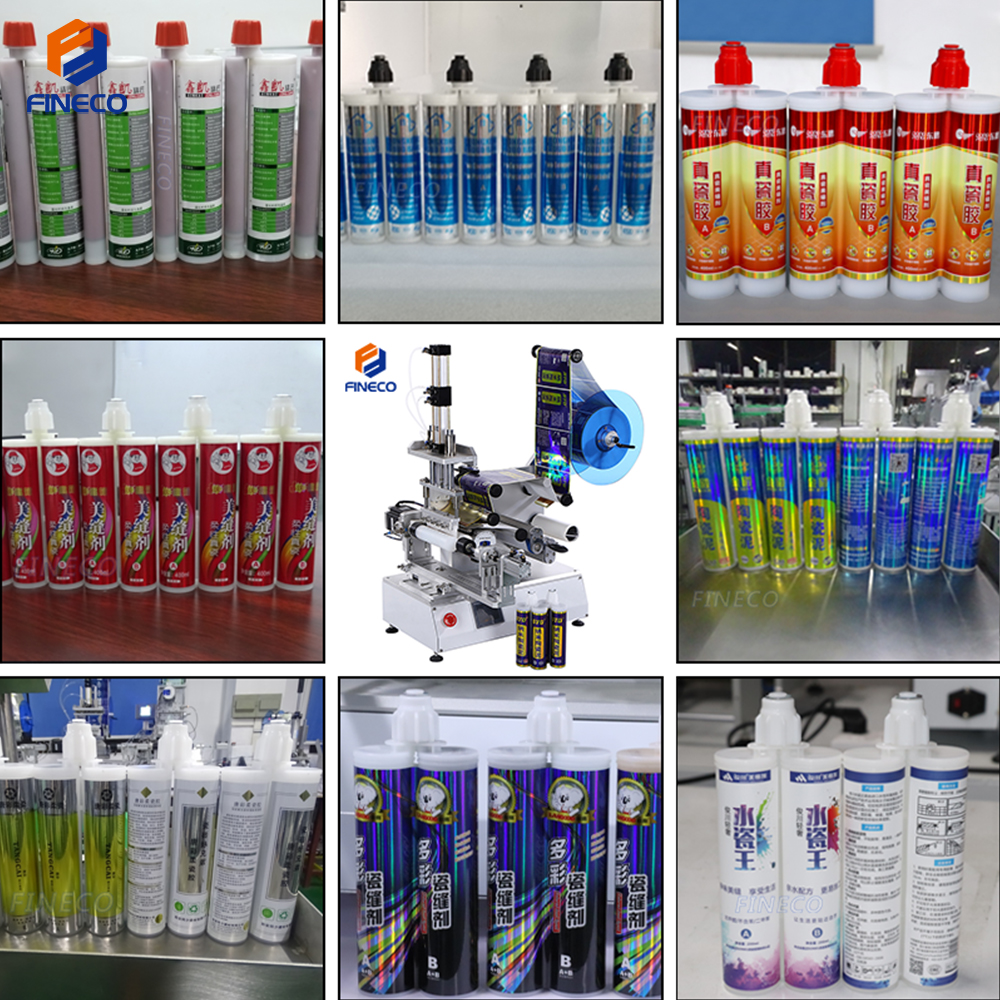

Partially applicable products:


Product Detail

Product Tags

FK616A Semi Automatic Sealant Labeling Machine

You can set video sharpness in the lower right corner of the video

Basic Use:

④ FK616A Adjust method is simple: 1.Adjust the height of the pressing plate and the position of the cylinder according to the size of the product,let the plate presses the product. 2.Adjust the position of sensor let a piece of label can be entire come out.3.Adjust the position of the product and the first stage labeling length, let the first stage label can be pressed between the two tubes of the produce by the press plate, the error of labeling is not visible to the naked eye , it is a good helper of the sealant labeling.

⑤ FK616A floor space about 0.56 stere.

⑥ Machine Support Customization.

Technical Parameters:

Parameter Date
Label Specification Adhesive sticker,transparent or opaque
Labeling Tolerance ±0.5mm
Capacity(pcs/min) 15~25
Suit bottle size(mm) L:20~200 W:20~150 H:0.2~120;Can be customized
Suit label size(mm) L:15-200;W(H):15-130
Machine Size(L*W*H) ≈830*720*950(mm)
Pack Size(L*W*H) ≈1180*750*1100(mm)
Voltage 220V/50(60)HZ;Can be customized
Power 660W
N.W(KG) ≈45.0
G.W(KG) ≈67.5
Label Roll ID:Ø76mm; OD:≤240mm
Air Supply 0.4~0.6Mpa

Working Principle:

1.Press the switch after the product is placed in the designated position, the machine will clamp the product and pull-out the label.

2.The press-plate on the top of machine will press the label onto the product and then the machine will make the product roll until the labeling is finished

3.Last release the product and the machine will automatic restore , a labeling process is completed.

Label Specification:

①Applicable labels: sticker label, film, electronic supervision code, bar code.

②Applicable products: Products that are required to be labeled on flat, arc-shaped,round, concave, convex or other surfaces.

③Application industry: Widely used in cosmetics, food, toys, chemical, electronics, medicine and other industries.

④Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.
