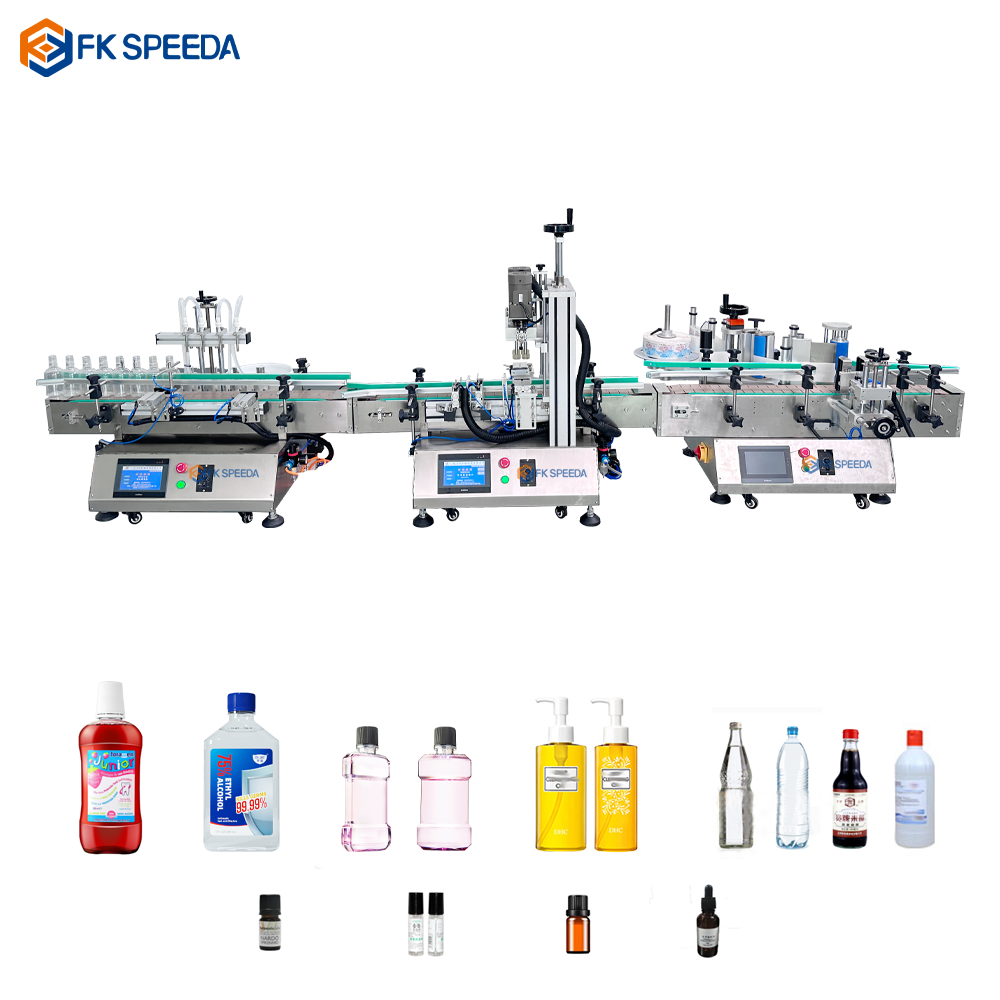

FK-D4 Desktop Automatic 4 heads Magnetic Pump Filling Machine
Short Description:
1.FK-D4 Desktop 4 heads Magnetic pump filling machine, This is a relatively small automatic filling-capping-labeling production line,suitable for small batch production factories.Can hold a variety of corrosive low viscosity particle free liquids.
2.Normally packaged in wooden case or wrapping film, also can be customized.Different models can be selected according to the size of the bottle mouth.
3.The machine is suitable for all liquid, sauce, gel except the liquid as thick as dough,Among them, the filling machine can choose to use piston filling machine,diaphragm pump liquid filling machine, electric liquid filling machine, etc. according to different materials.

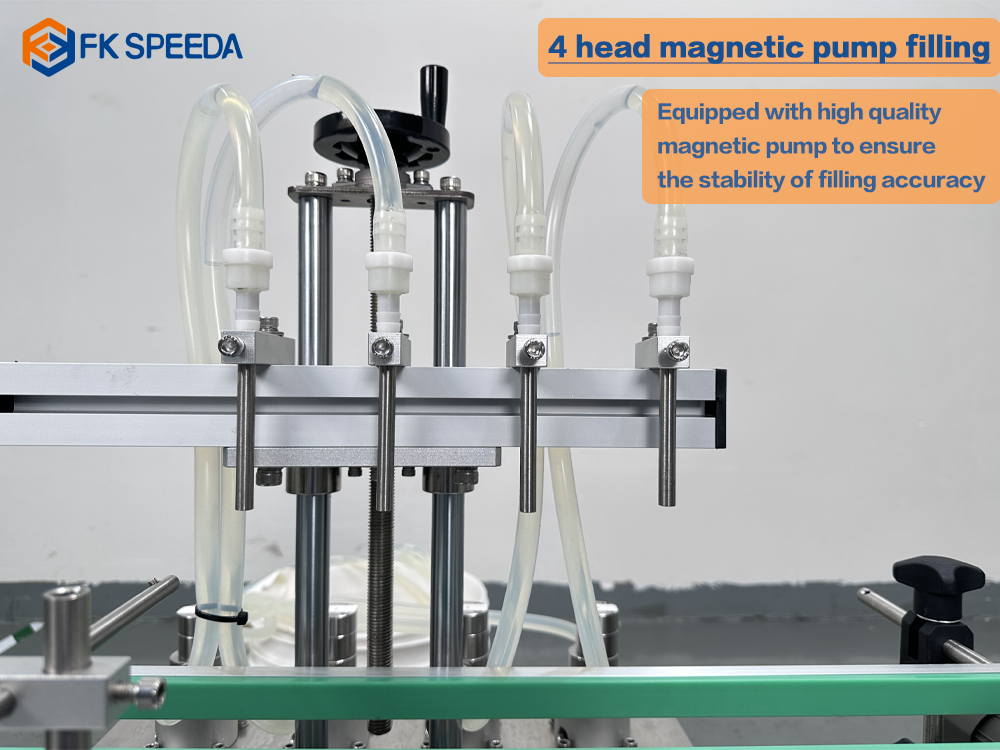

FK-D4 Desktop Automatic 4 heads Magnetic Pump filling machine

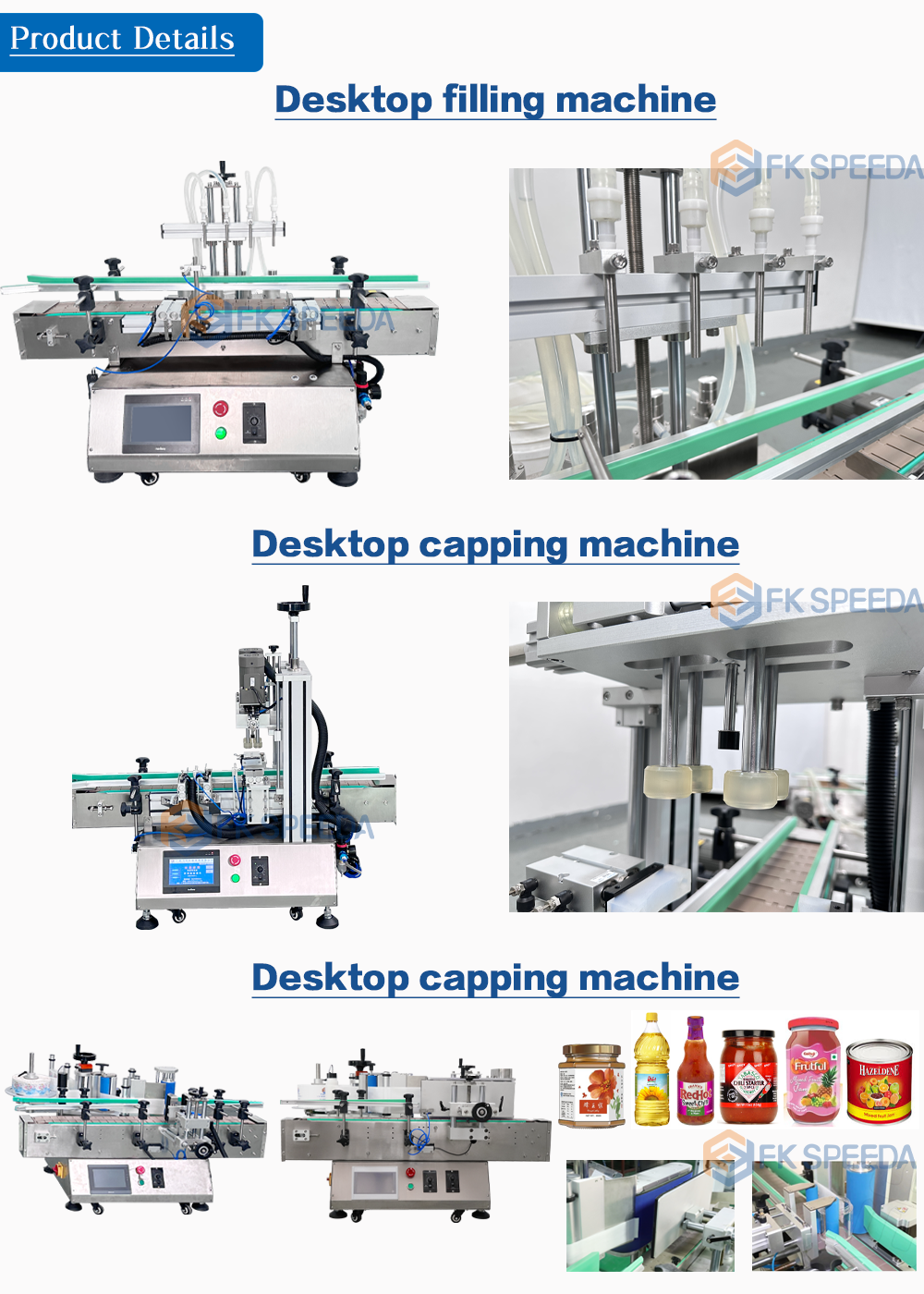

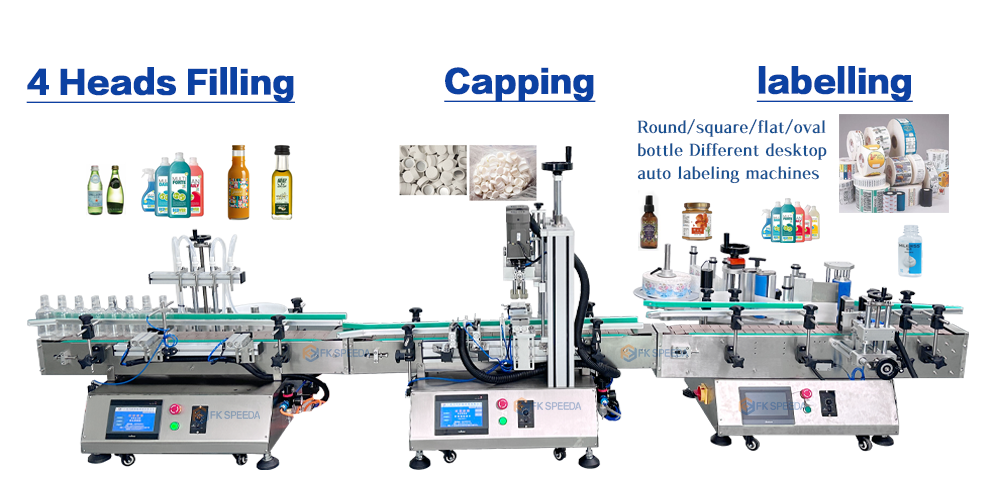

Desktop filling capping labeling line Features:

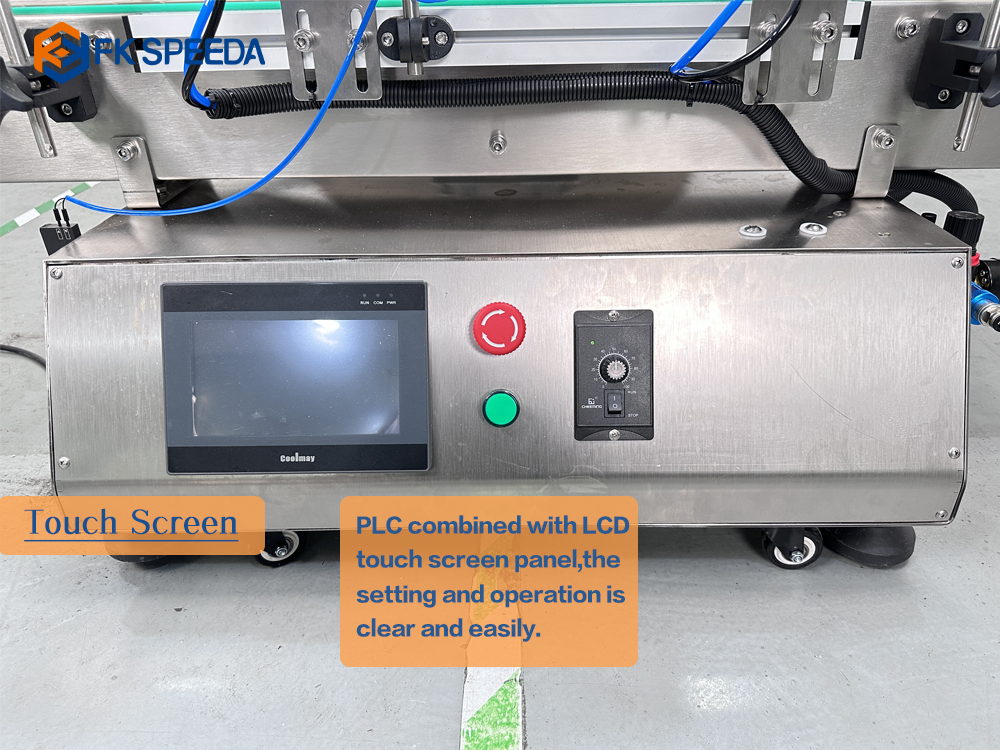

(1).PLC combined with LCD touch screen panel,the setting and operation is clear and easily.
(2).The equipment is complied with GMP requirements and made of SUS304 stainless steel andhigh-class aluminium alloy.
(3).The machine has many functions such as measuring, filling, counting.
(4).The filling speed,volume can be adjusted.
(5).The machine can be used in production line with conveyor belt.

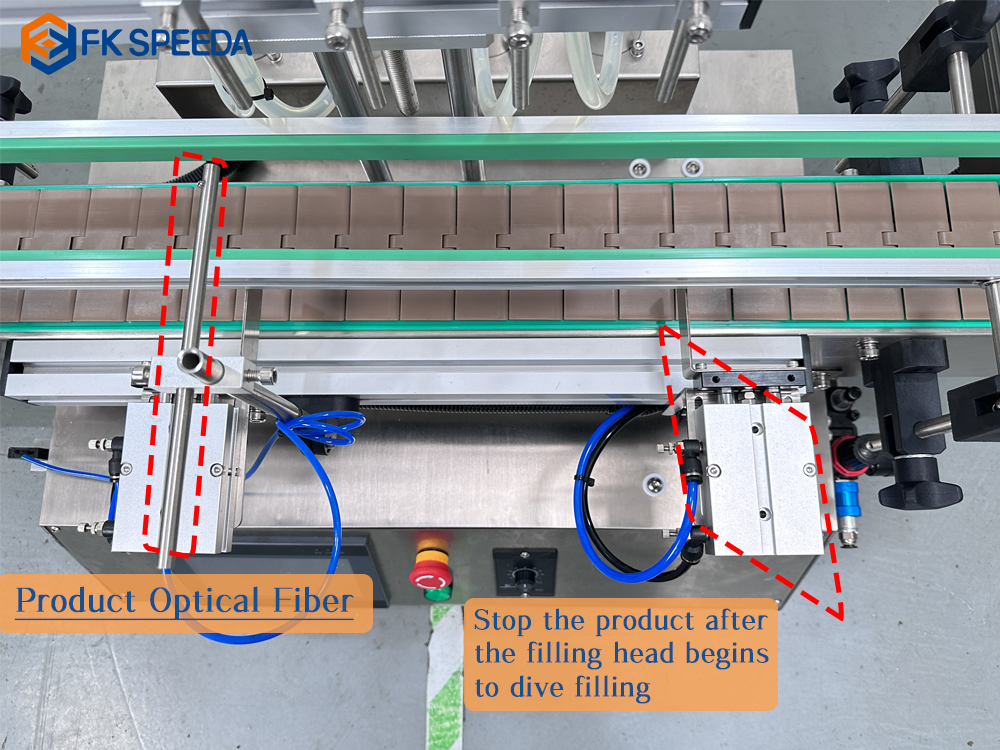

(6).Photoelectric sensor,mechatronic filling adjusting system,material level controlfeeding system.
|
Parameter
|
Data
|
|
Suitable filling diameter (mm)
|
>12mm
|
|
Filling material
|
Materials other than powders, particles and very viscous liquids
|
|
Filling Tolerance
|
±l%
|
|
50ml~1800mlFilling Capacity(ml)
|
50ml~1800ml
|
|
Suit bottle size(mni)
|
L: 30mm ~ 110mm; W: 30mm ~ 114mm; H: 50mm ~ 235mm
|
|
Speed(bottle/h)
|
900-1500
|
|
Quantitative way
|

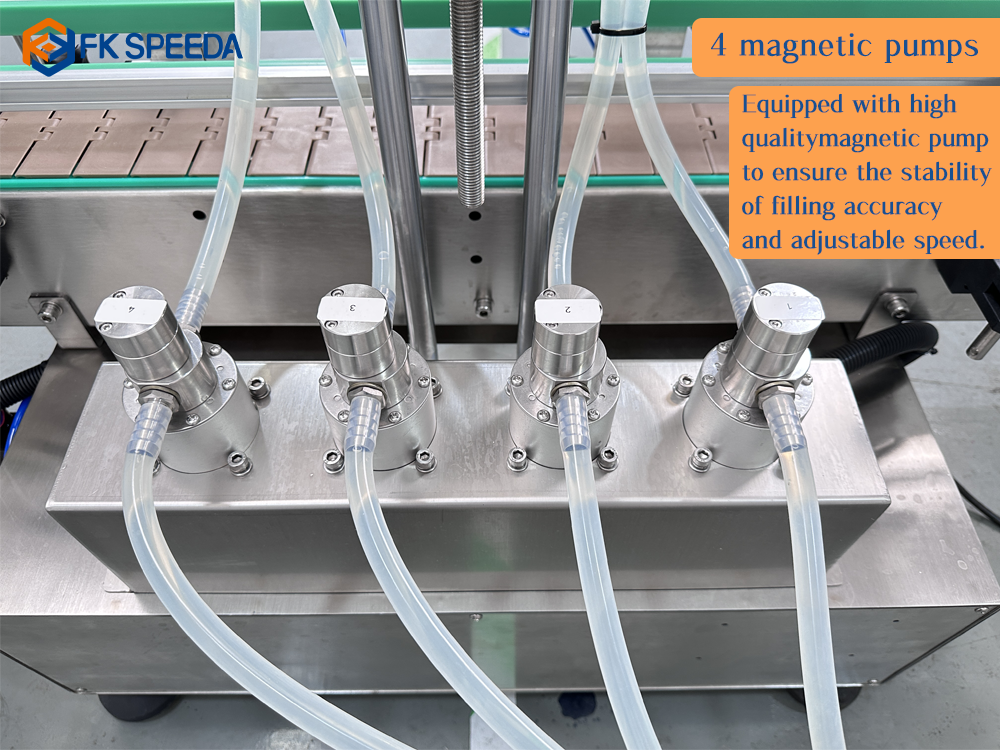

magnetic drive pump
|
|
Machine Size(mm)
|
1200*550*870
|
|
Voltage
|
380V/50(60)HZ;(Can be customized)
|
|
N.W (KG)
|
45KG
|
|
Additional functionality
|
Anti-drip, anti-splash and anti-wire drawing; High precision; Will not corrode
|
