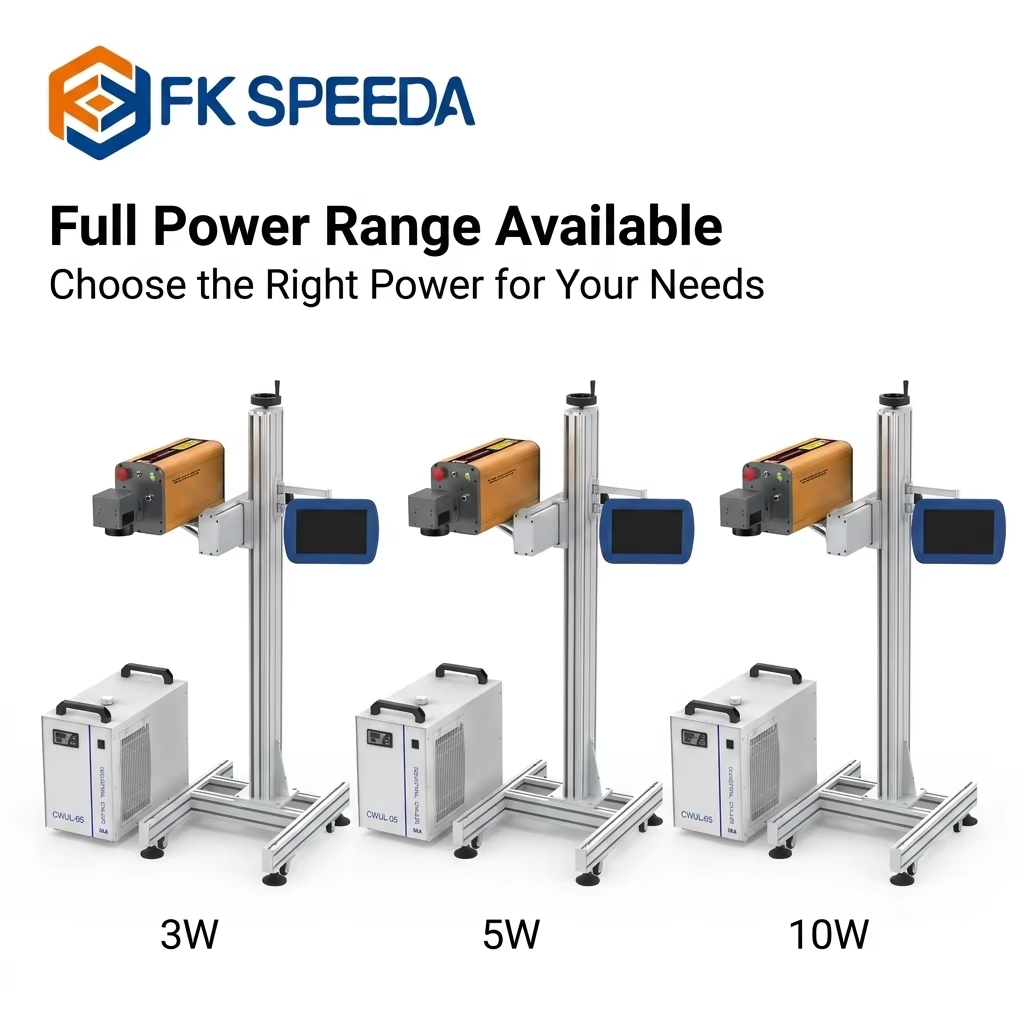

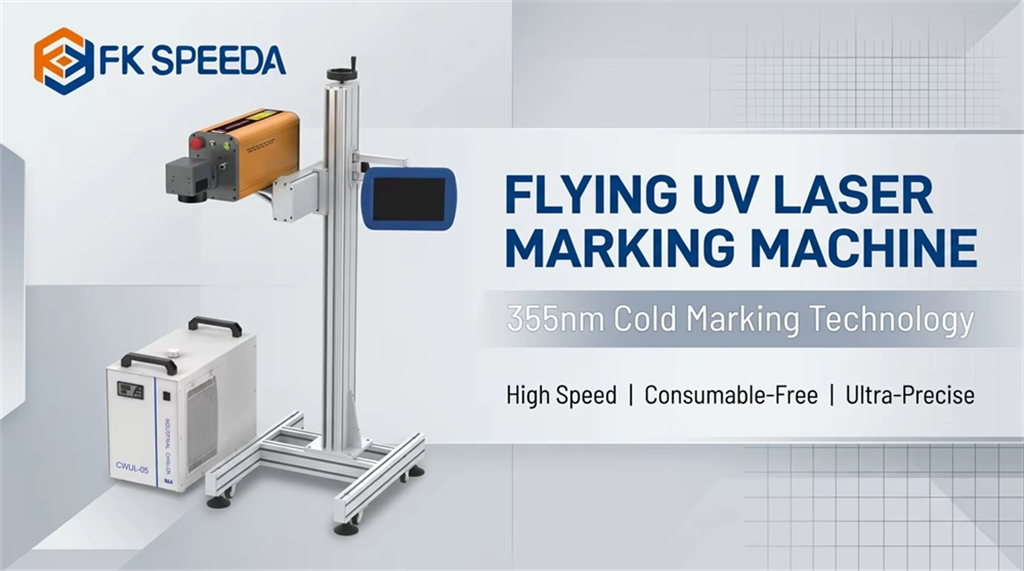

UV5030 Flying UV Laser Marking Machine 3W 5W 10W for Plastic Glass Medicine Bottles Packaging High Speed 200m/min

Short Description:

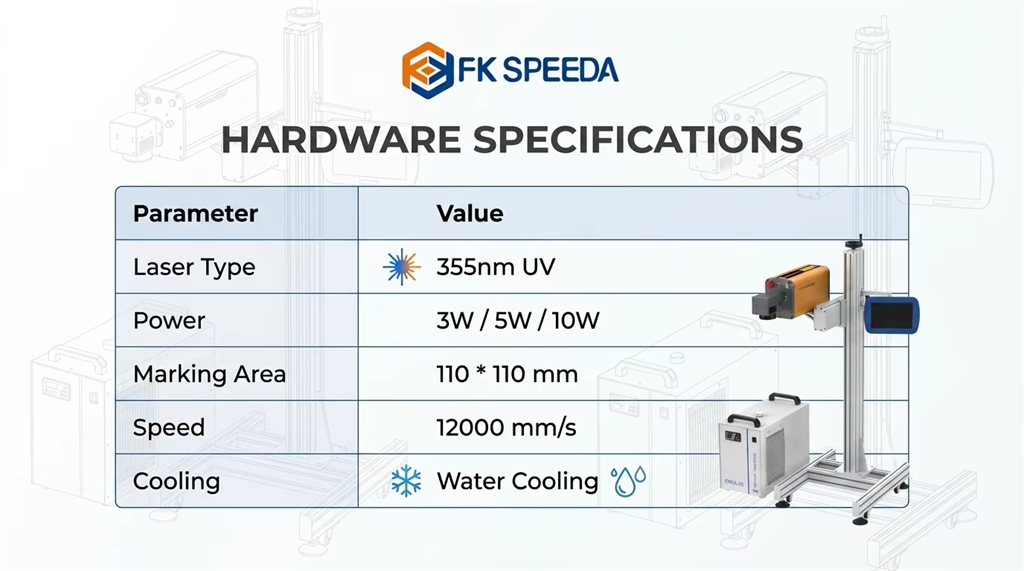

This series adopts industrial-grade 355nm UV laser. Featuring short wavelength and smaller focused spot, it enables ultra-fine marking. Developed as a high-speed continuous marking model for productivity improvement, it boasts excellent beam quality and high reliability. The marking speed on production lines reaches up to 200 m/min (for numerals and letters with single-line character height of 2 mm), meeting marking demands for high-speed and high-volume production. It is mainly used for production date coding and anti-counterfeiting marking in pharmaceutical and food packaging industries.

It supports automatic coding, serial numbers, batch numbers, dates, barcodes, QR codes, automatic serial increment and other functions to satisfy customer demands across diverse industries. With high automation, the machine can be integrated with other production line equipment and flexibly installed on assembly lines. The frame allows vertical and horizontal adjustment; the marking head supports 360° rotary marking. Capable of 24-hour non-stop operation, it effectively lifts production efficiency.

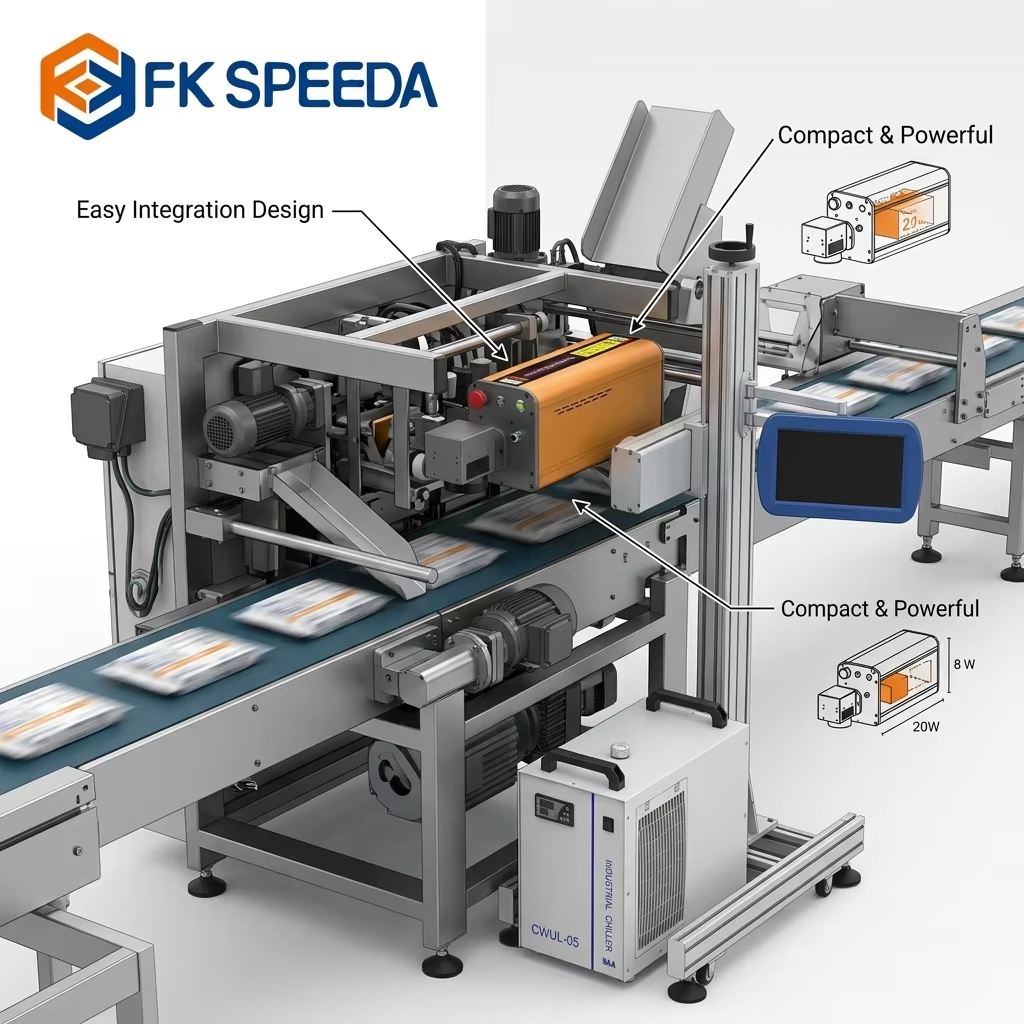

Equipped with an innovatively compact laser marking head in the industry, it enables easy integration, lower installation costs and improved positioning flexibility. With marking speed up to 200 m/min (for numerals and letters with single-line character height of 2 mm), it fits medium-speed and high-speed production lines.

Send email to us

Product Detail

Product Tags

Industrial High Speed Flying UV Laser Coder UV5050 for HDPE PET Bottle QR Code Expiry Date Printing 355nm Cold Marking Laser

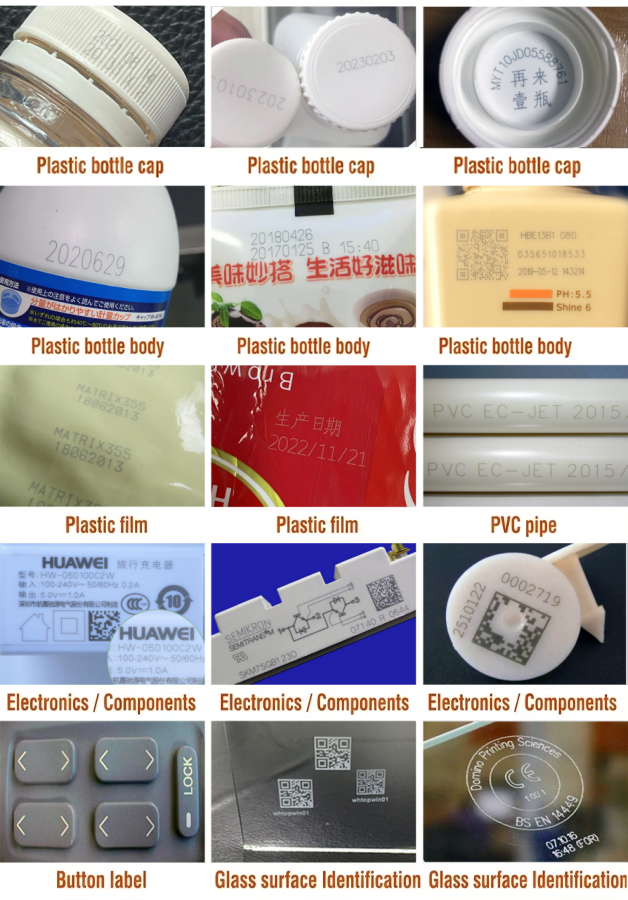

Applicable Materials

Flying UV laser marking machines deliver ultra-fine marking on a wide range of materials, suitable for various pipes, plastic films, plastic caps, as well as PPR, PVC, PE and similar materials. Widely applied in food & beverage packaging, alcohol, dairy products, electronic components, pharmaceuticals, personal care products, tobacco, chemical building materials and other industries, it marks graphics and texts including production & expiry dates, batch numbers, shift codes, manufacturer names and logos.

Pipes, plastic films, plastic caps, PPR, PVC, PE and similar materials
Marking and micro-hole machining on glass, polymer material surfaces
Marking and micro-hole drilling (hole diameter d ≤ 10 μm) on packaging bottles & boxes made of polymer materials for food, medicine, cosmetics, electric wires, etc.

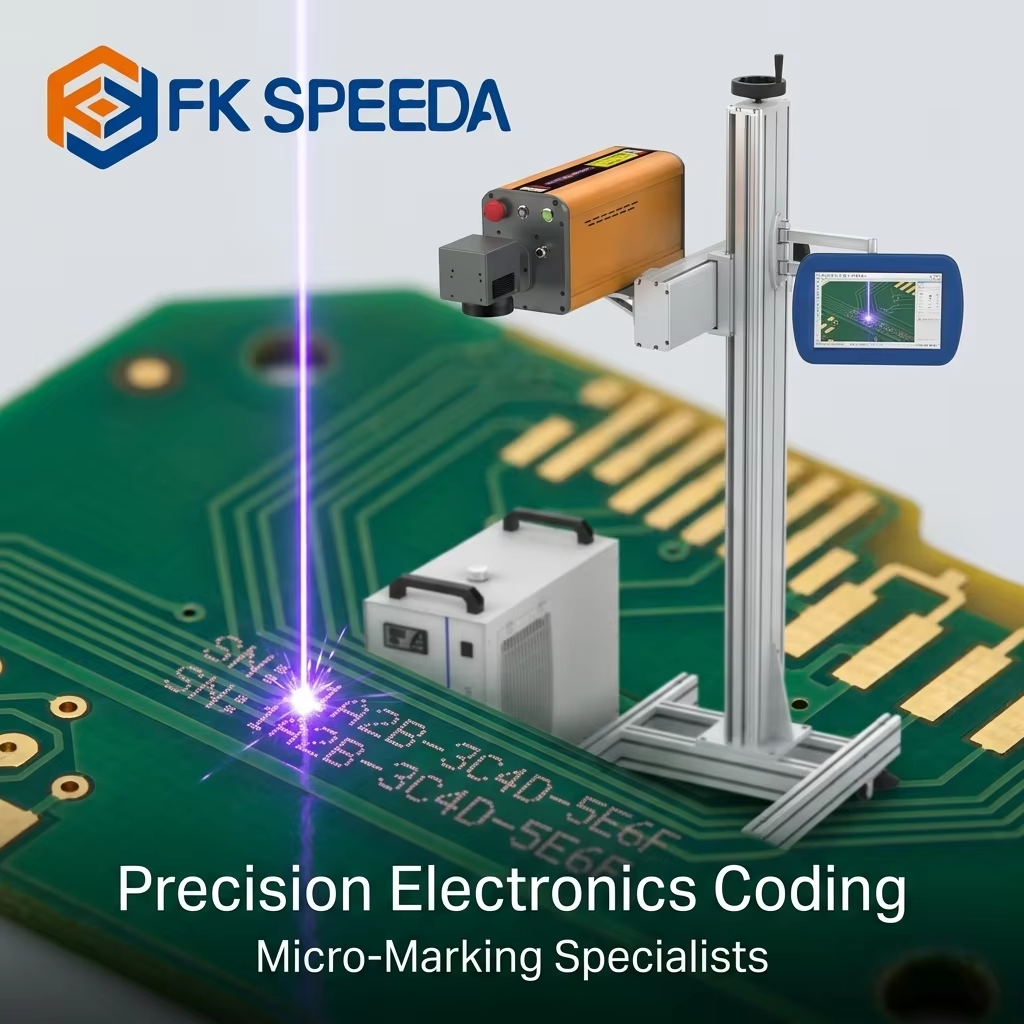

Marking and scribing cutting for flexible PCB, LCD and TFT panels
Removal of metallic or non-metallic coating layers
Micro-hole and blind-hole machining on silicon wafers

Software Functions

The marking software equipped for this series is fully functional. It is compatible with files from CorelDraw, AutoCAD, Photoshop and other software; supports formats including PLT, PCX, DXF, BMP; directly recognizes SHX and TTF fonts. It supports automatic coding, serial number printing, batch numbers, dates, barcodes, QR codes, automatic serial increment, etc.

Freely design graphics for processing
Supports TrueType fonts, single-line fonts (JSF), SHX fonts, dot matrix fonts (DMF), 1D barcodes and 2D QR codes
Flexible variable text processing; text can be modified in real time during processing; supports dynamic reading of text files and Excel files
Supports direct reading of text data via serial port
Supports direct reading of text data via Ethernet port
Built-in automatic text splitting function to adapt to complex processing scenarios
Powerful node editing and graphic editing functions, supporting curve welding, clipping and intersection operation
Supports up to 256 pens (layers); different processing parameters can be assigned to separate objects
Compatible with common image formats (bmp, jpg, gif, tga, png, tif, etc.)
Compatible with mainstream vector graphics formats (ai, dxf, dst, plt, etc.)
Standard image processing functions (grayscale conversion, black-white conversion, halftone processing, etc.); supports processing of 256-level grayscale images
Advanced filling function including annular filling
Multiple controllable objects; users can freely configure interaction between the system and external equipment
Open multi-language support, easily compatible with languages worldwide
