Guangdong Feibin Machinery Group Co., Ltd has officially launched its independently developed FK-Series High-Speed Labeling Head — a proprietary, modular label applicator unit engineered to operate at speeds ranging from 30 to 250 m/min, backed by EU CE certification, invention patents, and industrial design patents.
For packaging line integrators and equipment manufacturers seeking a reliable, high-performance labeling head that can be retrofitted into existing lines or specified into new builds, the FK-Series represents a departure from the constraints of conventional applicator designs. Where standard self-adhesive labeling heads typically peak at 25–30 m/min and offer limited connectivity, the FK-Series is built around a fundamentally different mechanical and electronic architecture — one that Guangdong Feibin has protected through multiple registered patents.
Speed Tiers Designed for Real Production Demands

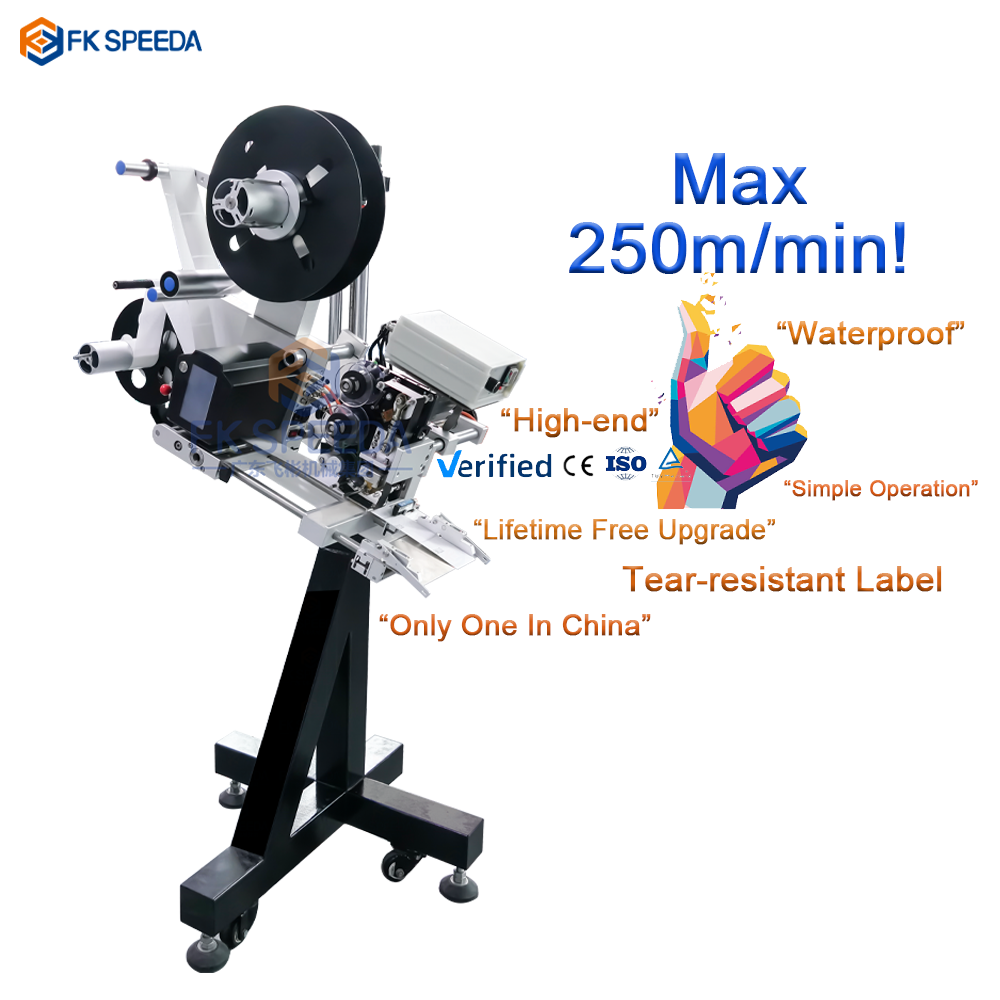

The most immediate distinction between the FK-Series and an ordinary labeling head is its configurable speed range. Rather than a fixed output, the FK-Series is available in six speed configurations: 0–30 / 50 / 80 / 100 / 150 / 250 m/min — selectable to match the throughput of the host line. For high-output production environments running beverage, food, pharmaceutical, or industrial product lines, this means the high-speed label applicator can keep pace with the conveyor rather than becoming the bottleneck. Custom speeds beyond 250 m/min are also available on request.
The mechanical design simultaneously addresses a persistent complaint about high-speed label application: label breakage. The FK-Series label path geometry and tension management system are engineered to feed the label ribbon smoothly at elevated speeds, significantly reducing the label-break incidents that interrupt conventional automatic labeling machines during high-velocity runs.
Modular Architecture — One Head, Four Application Modes

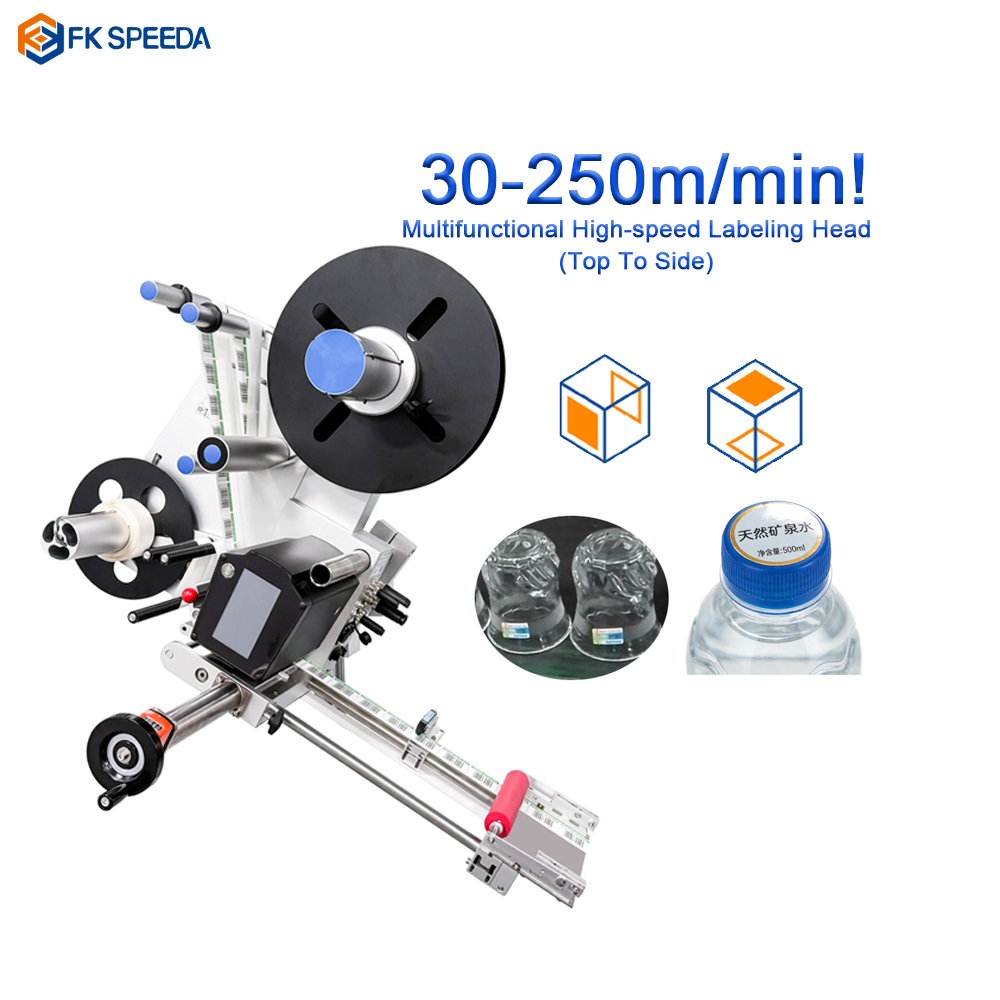

The FK-Series adopts a modular labeling head design with an integrated circuit control system. A single head supports top labeling, side labeling, bottom labeling, and round bottle labeling — with orientation configured at installation rather than requiring separate units per application. This versatility reduces spare parts inventory and simplifies line changeovers for facilities running multiple container formats.

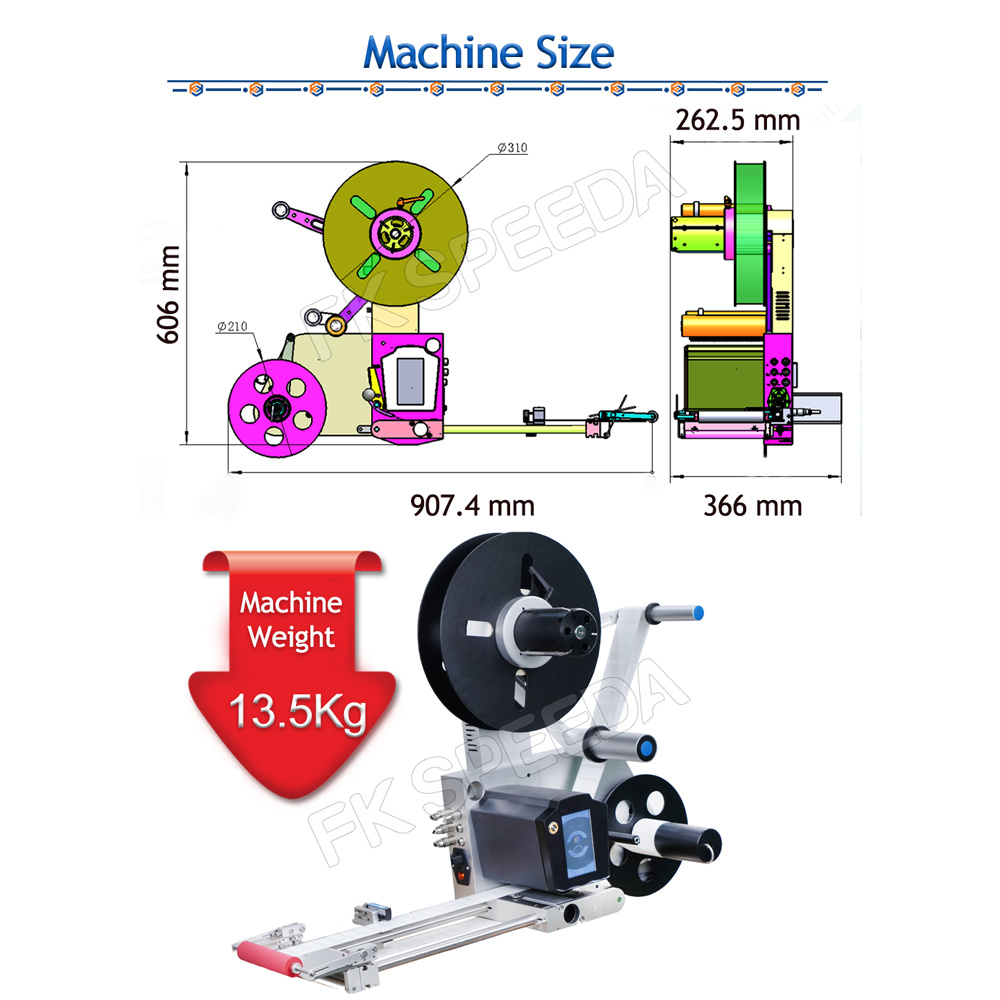

At just 13.5 kg, the FK-Series is significantly lighter than comparable heads in its speed class. The reduced weight lowers freight costs when shipping as a replacement or upgrade component and simplifies mounting and alignment during integration into existing automatic labeling machine frames.
Integrated Intelligence: IoT Connectivity, Remote Upgrade, and Data Acquisition
The FK-Series is not a mechanical-only labeling head. Its integrated electric control interface provides a rich set of docking ports for external connectivity:
- Computer control interface for centralized line management
- Network port for plant-floor data integration
- Remote program upgrade capability — firmware updates without on-site engineer visits
- IoT system connection for real-time monitoring and production data acquisition
- On-line input/output IO ports for synchronization with upstream and downstream equipment
Label detection is handled by a German SICK sensor — available in standard and transparent label variants — ensuring reliable gap detection across the full speed range. A built-in touchscreen monitor allows on-head parameter adjustment without navigating to a separate HMI panel.
The winding system supports both left-winding and right-winding label rolls, with mechanical or electric unwinding options to suit different label stock configurations.
Patent-Protected, CE-Certified, and Production-Ready
The FK-Series high-speed labeling head carries EU CE certification, confirming compliance with European machinery safety directives and making it a direct fit for export-market packaging lines in the EU, UK, and other CE-recognized regions. The underlying technology is additionally protected by registered invention patents and industrial design patents — a level of IP coverage that reflects the depth of original engineering invested in this product.
“We built the FK-Series because our customers kept telling us that the labeling head was the weakest link on their high-speed lines,” said a senior product engineer at Guangdong Feibin. “The speed ceiling was too low, the connectivity was non-existent, and label breaks were costing real production time. We solved all three — and protected the solution.”
Application Scope
The FK-Series high-speed label applicator head is suitable for integration into labeling systems serving:
- Food and beverage production lines
- Pharmaceutical and nutraceutical packaging
- Daily chemical and personal care product lines
- Industrial component and logistics label application
- Fresh produce and agricultural packaging lines
It is compatible as a retrofit upgrade for existing labeling frames or as a specified component in new automatic labeling machine builds supplied by OEM integrators.
To request a technical datasheet, integration specification, or demonstration unit, contact the Guangdong Feibin international sales team.
About Guangdong Feibin Machinery Group Co., Ltd
Guangdong Feibin Machinery Group Co., Ltd is a leading packaging machine manufacturer and labeling machine manufacturer based in Guangdong, China. The company specializes in high-speed labeling heads, automatic labeling machines, filling machines, capping machines, and complete turnkey packaging line solutions, serving global clients across food, beverage, pharmaceutical, and industrial sectors. All core products carry CE certification and are supported by full OEM/ODM engineering capability.
