Guangdong Feibin Machinery Group Co., Ltd has introduced the FK-Series 10-Head Multi head Weigher Granule Filling Production Line — a fully integrated, five-station automated packaging system purpose-built for nuts, dried fruit, granule snacks, and free-flowing solid food products packaged in jars and canisters.
For food manufacturers scaling production of premium nuts, mixed snacks, or health food products, the true bottleneck is rarely the product itself — it is the gap between weighing accuracy, filling consistency, and downstream capping and labeling throughput. The FK-Series 10-head combination weighing filling line closes that gap by fusing five previously separate processes into a single, uninterrupted production flow.

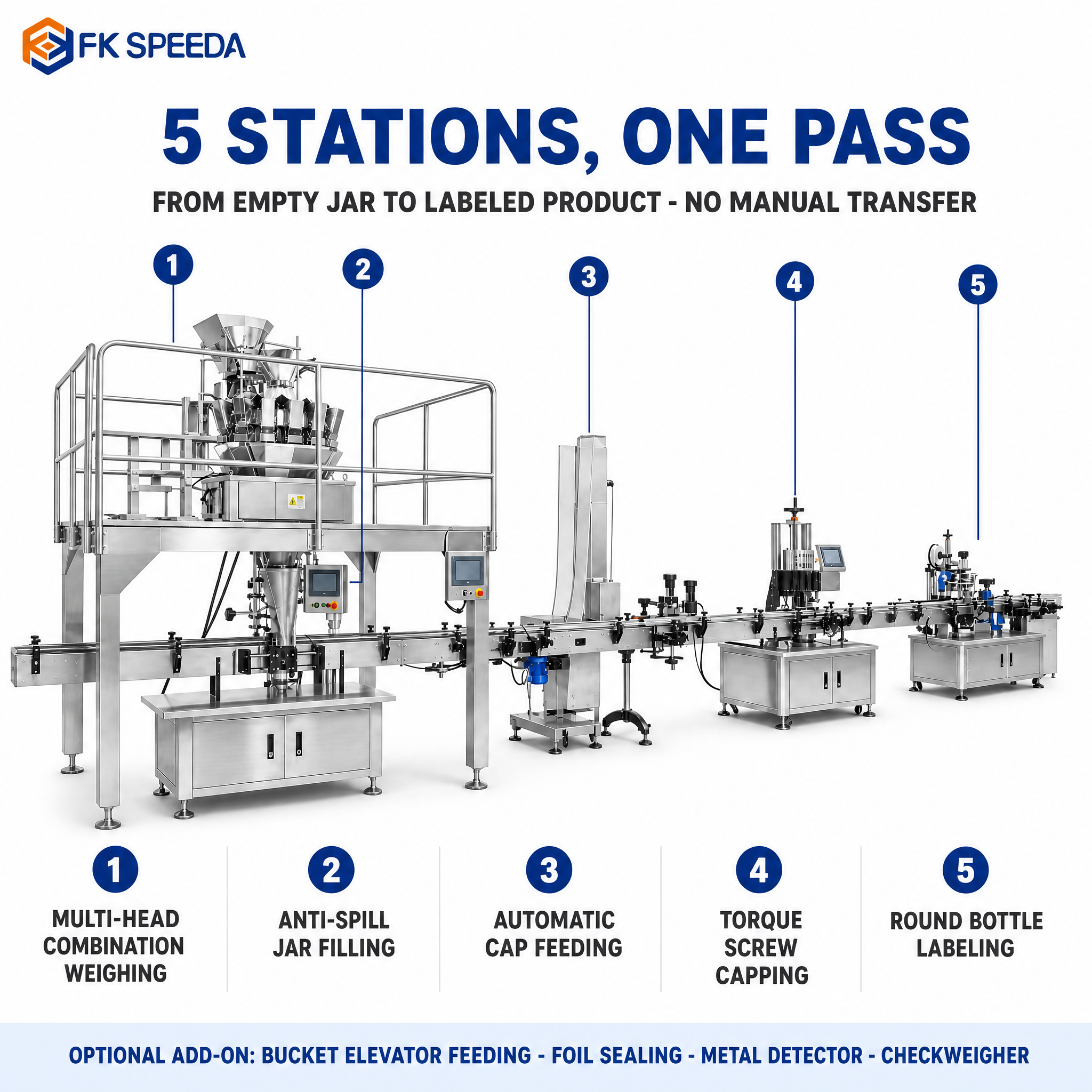

Five Stations. One Continuous Pass. Zero Manual Transfer.
The FK-Series operates across five synchronized stations, each engineered to hold pace with the others without operator intervention between steps:

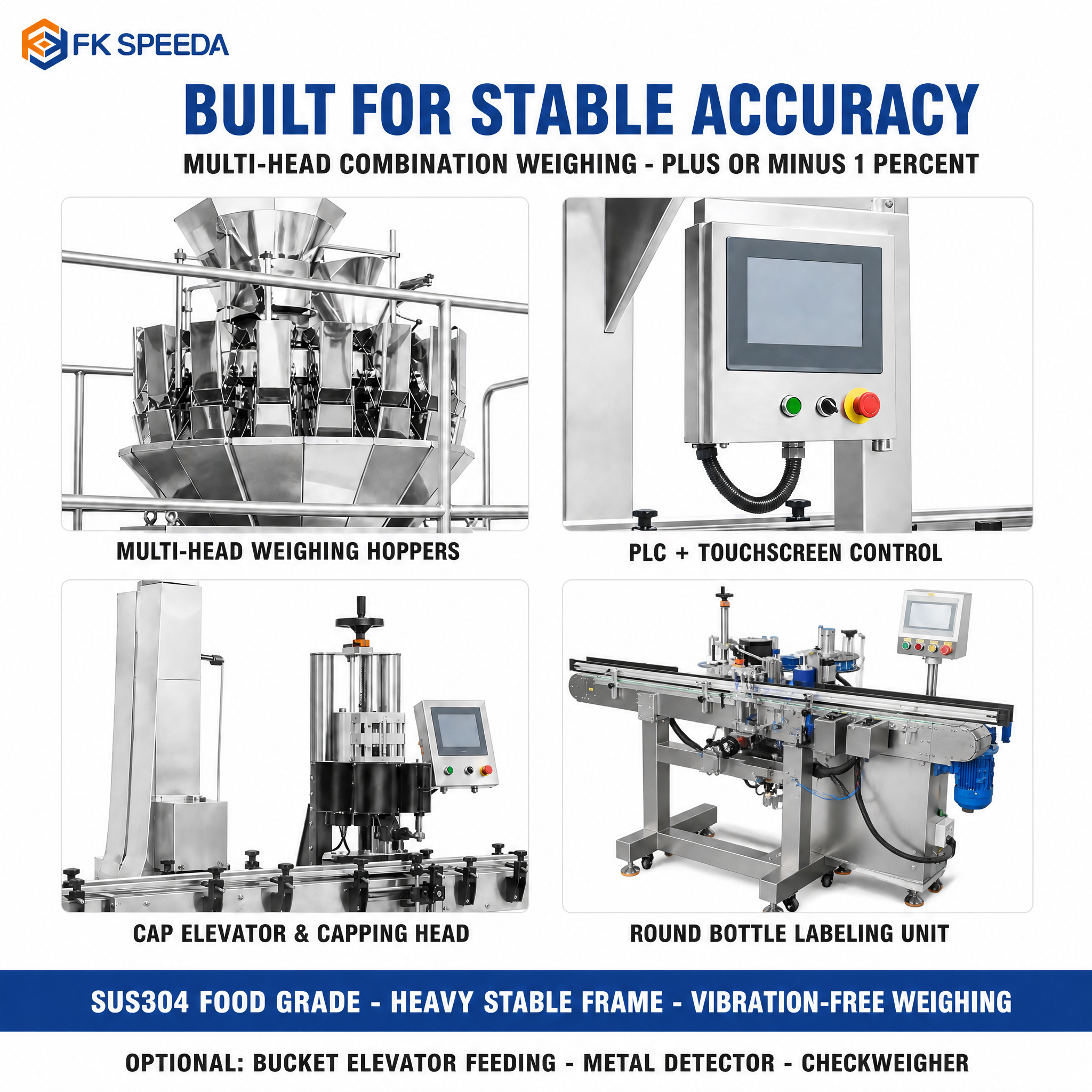

Station 1 — Multi-Head Combination Weighing: A 10-head multi head weigher with vibration-free hopper configuration uses PLC logic to calculate the optimal hopper combination for each batch, delivering a target fill weight of 100–1,000 g at ±1% accuracy — consistently, across every jar, every cycle.
Station 2 — Anti-Spill Jar Filling: A tapered anti-spill funnel, sized precisely to the customer’s jar mouth diameter (Ø25–180 mm), channels product cleanly into the container at full line speed. Spillage and product waste — two persistent costs in manual and semi-automatic granule filling machines — are effectively eliminated.
Station 3 — Automatic Cap Elevator: Caps are lifted, orientated, and delivered to the capping station in a continuous supply. No operator is required to refill or manage the cap feed, removing a common manual bottleneck in high-speed jar packaging lines.
Station 4 — Torque-Controlled Screw Capping: The automatic screw capping machine applies controlled, consistent torque to every lid. Stripped threads and loose caps — chronic quality complaints in nut jar production — are designed out of the process.
Station 5 — Round Bottle Labeling: A round bottle labeling machine with sensor verification applies a self-adhesive wrap-around label to every jar before it exits the line. Every finished unit leaves fully labeled, with no secondary labeling station required.
Optional add-on modules include bucket elevator feeding, aluminium foil induction sealing, metal detection, and checkweighing — allowing buyers to configure the line to their facility’s specific compliance or quality requirements.
One Line Across Your Entire Product Range
A persistent challenge for multi-SKU food brands is the capital cost and floor space required to run separate filling lines for different jar sizes. The FK-Series resolves this with a container span of Ø25 mm to Ø180 mm bottle mouth diameter, accommodating slim supplement bottles, standard 250 g snack jars, and wide-mouth 1,000 g premium nut canisters on the same line — in PET, PP, or HDPE formats.
Changeover between jar formats is managed through the 7-inch PLC touchscreen interface, with parametric settings saved per SKU. This custom granule packaging line approach means manufacturers invest in one line, not three.
Engineered to Your Facility — Not a Standard Catalogue Item
Guangdong Feibin does not ship a standard granule filling machine from stock. Every FK-Series line is configured against the client’s product sample, container drawing, target output speed, and workshop dimensions. The engineering team produces a custom 3D line layout, confirms station configuration, and sets voltage and format parameters before production begins.
The entire frame is constructed from SUS304 food-grade stainless steel, meeting GMP-compliant packaging line standards applicable to food, nutraceutical, and health supplement production environments. The structure is built for stability under continuous multi-shift operation, with low vibration and low-noise running characteristics.
“Every granule product behaves differently in a hopper — cashews fracture differently than macadamia, and sesame flows differently than pumpkin seeds,” said a senior engineer at Guangdong Feibin. “Our line is designed around the product, not the other way around. That is why we start with the customer’s sample before we finalize any mechanical specification.”
Applicable Products
The FK-Series 10-head weigher filling production line is validated for a wide spectrum of granular and semi-granular food products, including:
- Premium whole nuts: cashew, macadamia, pecan, walnut, almond
- Dried fruit and berry mixes
- Pumpkin seeds, sunflower seeds, and grain snacks
- Health food granule supplements and solid beverage powders
- Condiments and seasoning granules (salt, MSG, sugar, feed additives)
To request a line configuration proposal, product trial assessment, or factory demonstration, contact the Guangdong Feibin international sales team.
About Guangdong Feibin Machinery Group Co., Ltd
Guangdong Feibin Machinery Group Co., Ltd is a leading packaging machine manufacturer based in Guangdong, China, specializing in multihead weighers, automatic filling machines, capping machines, labeling machines, and complete turnkey packaging line solutions. Serving global clients across the food, nutraceutical, chemical, and daily consumer goods industries, Feibin delivers GMP-compliant, high-performance automated packaging equipment with full OEM/ODM engineering capability.
For more information or to request a free line consultation, please contact us
Post time: Aug-19-2026
