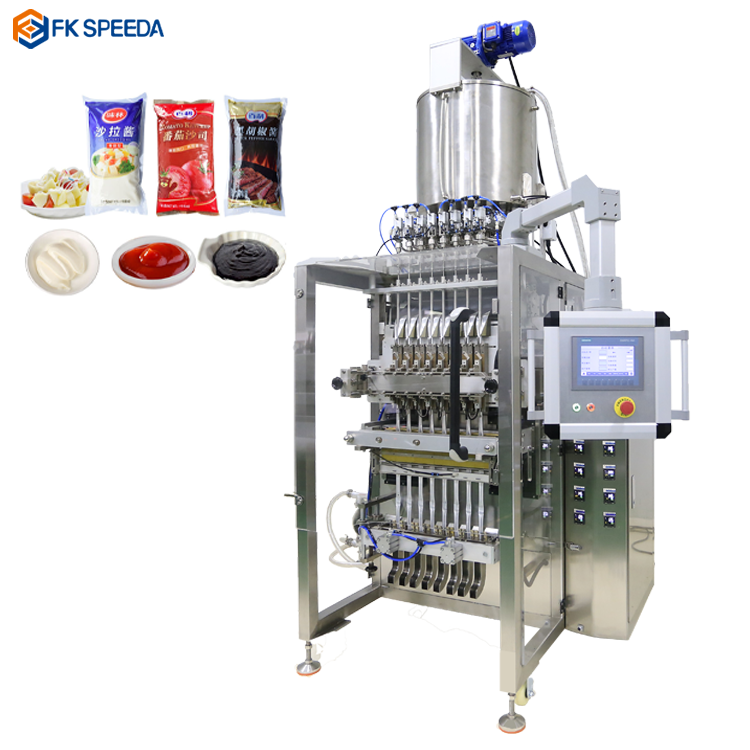

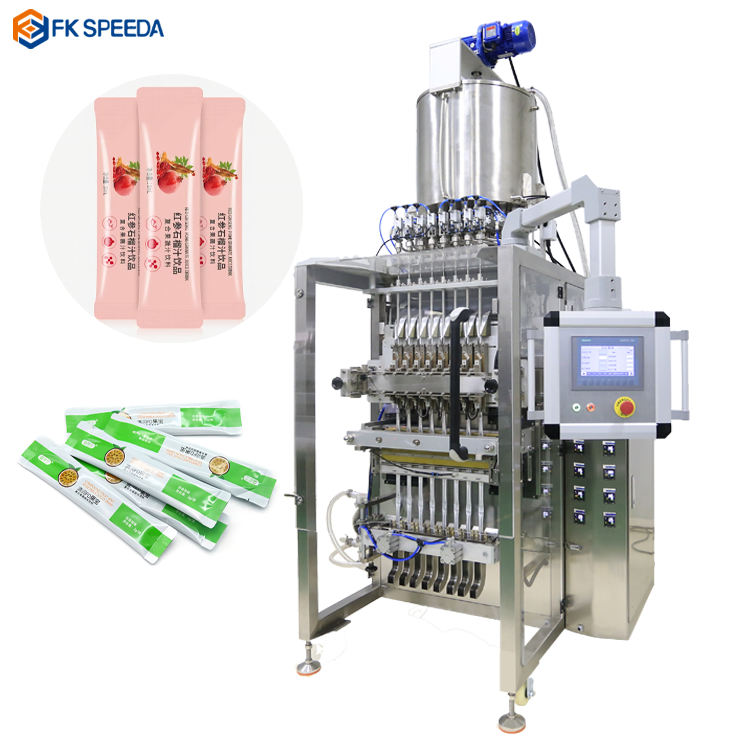

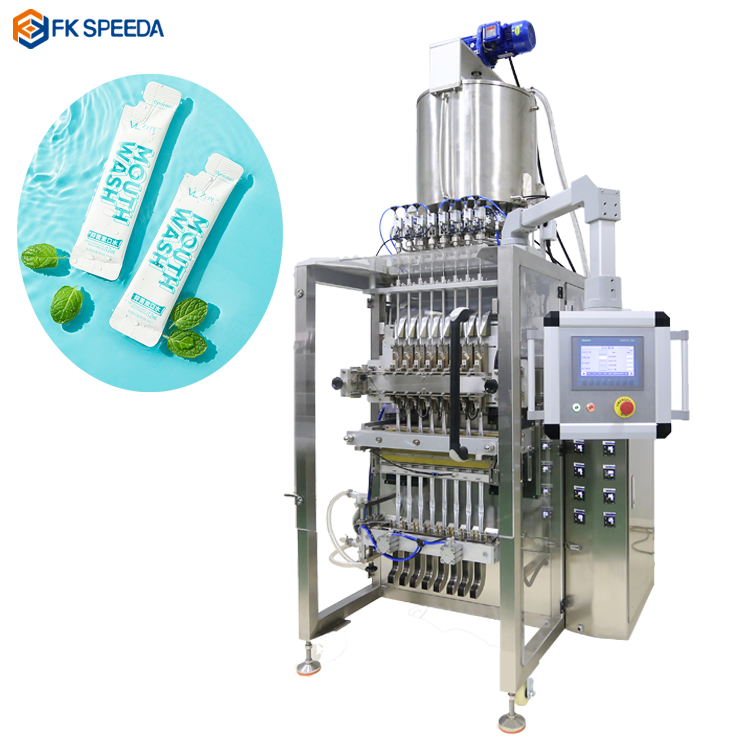

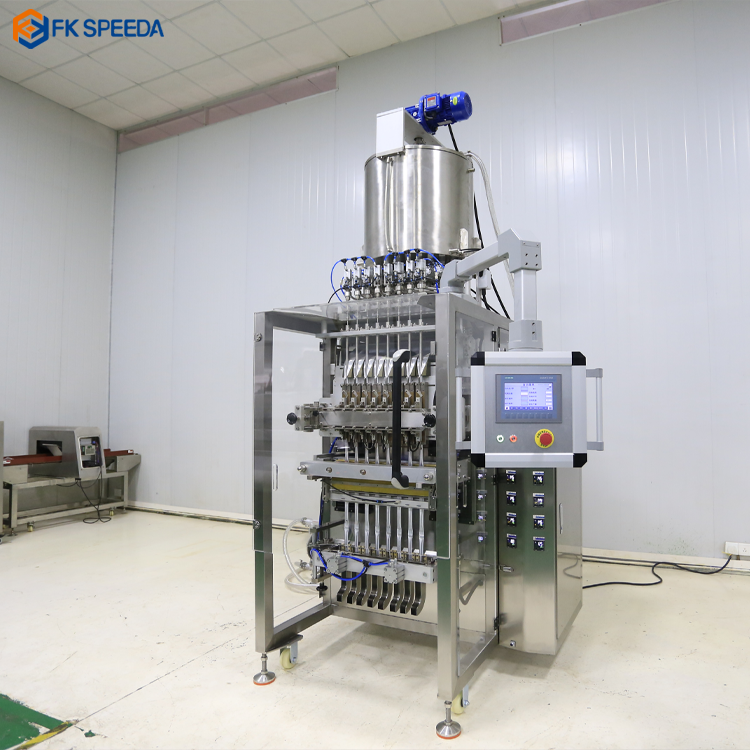

Multi lane Back seal liquid packing machine
Short Description:
Factory Customized Multi-Lane 4 Lane Automatic Liquid Fruit Jelly Back Sealed Stick Packing Machine
Application:
Automatic multilane liquid sachet/stick packing machine, it is suitable for many kinds of liquid products, such as ketchup, chocolate, mayonnaise, olive oil, chili sauce, honey, drinks, jelly, medicine, shampoo, cream, lotion etc.
Machine Parameter
| Model |
FK300BY |
FK600BY |
FK900BY |
| Lanes number |
2-6 lanes |
3-12 lanes |
4-18 lane |
| Capacity |

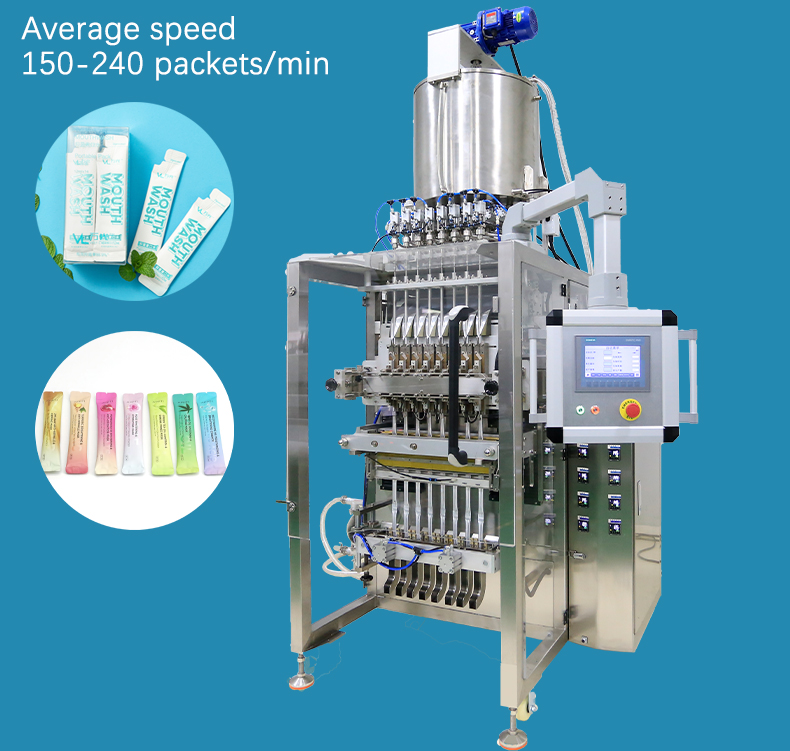

Max.25-40cycle/min/lane |
||
| Bag size |
L：50-180mm W:17-70mm |
L::50-180mm W:17-95mm |
L::50-180mm W:17-105mm |
| Film width&thickness |
Max.300mm,0.07--0.1mm |
Max.600mm,0.07--0.1mm |
Max.900mm,0.07--0.1mm |
| Measuring Method |
|
||
| Sealing type |
Back sealing/stick bag |
Back sealing/stick bag |
Back sealing/stick bag |
| Cutting type |
1.Straight cutting;2Zig zag cutting 3. Round cutting;4. Die-cut |
||
| Power supply |
50HZ/AC220V/380V/3.5kw |
50HZ/AC220V/380V/5.5kw |
50HZ/AC220V/380V/7.5kw |
| Air consumption |
0.8 MPA 0.8m3/min |
0.8 MPA 0.8m3/min |
0.8 MPA 0.8m3/min |
| Dimension |
1385*918*2005mm |
1685*1300*2005mm |
1700*1600*2500mm |
| Weight |
400kg |
600kg |
950kg |
