Lowest Price for Automatic Label Printing Machine - FK811 Automatic Plane Labeling Machine – Fineco

Short Description:

weight labeling machine can be directly installed in the assembly line or other supporting machinery and equipment, and is widely used in food, electronics, printing, medicine, daily chemical and other industries. It can print and label the products that flow in real time online, and unmanned printing and labeling production; Print content: text, numbers, letters, graphics, bar codes, two-dimensional codes, etc.weight labeling machine Suitable for fruits, vegetables, boxed meat real-time printing weighing labeling. Support custom labeling machine according to the product.

Partially applicable products:

Send email to us

Product Detail

Product Tags

Feedback (2)

We're committed to providing easy,time-saving and money-saving one-stop purchasing service of consumer for Sticker Labeling Machine Spare Parts, Metal Bucket Labeling Machine, Labeled Label Maker, With the eternal goal of "continuous quality improvement, customer satisfaction", we are sure that our product quality is stable and reliable and our products are best-selling at home and abroad.

Lowest Price for Automatic Label Printing Machine - FK811 Automatic Plane Labeling Machine – Fineco Detail:

FK811 Automatic Plane Labeling Machine

Machine description:

③ FK811 has additional functions to increase:

1. Configuration code printer or ink-jet printer, when labeling, print clear production batch number, production date, effective date and other information,coding and labeling will be carried out simultaneously.

2. Configuration printer,change printer contents at any time,realize the function of printing and labeling at the same time.

3. Automatic feeding function (combined with product consideration);

4. Automatic material collection function (combined with product consideration);

5. Increase labeling device;

④ FK811 Adjust method is simple: 1. Adjust the height of the labeling mechanism,make the labeling knife edge higher 2mm than product height and at the same level. 2. Adjust the conveyor belt and labeling speed on the touch screen so that they want to match. 3. Adjust the position of the sensor so that each label can be completely run out. 4. Adjust the height of the brush, let brush slight touch the labeling surface of the product.

⑤ FK811 floor space about 1.87 stere.

⑥ Machine Support Customization.

The FK811 labeling machine has simple adjustment methods, high labeling accuracy and good quality, Applicable to the requirements of high precision, high output products,and it is difficult to see the error with the naked eye.

Working Principle:

1. Click star on the touch screen.

2. The product placed next to the guardrail, then the conveyor belt will move the products forward.

3. When the sensor detects that the products has reached target location,the machine will send out the label and the brush attaches the label to the product,a labeling process is completed.

Label Specification:

① Applicable labels: sticker label, film, electronic supervision code, bar code.

② Applicable products: Products that are required to be labeled on flat, arc-shaped,round, concave, convex or other surfaces.

③ Application industry: Widely used in cosmetics, food, toys, chemical, electronics, medicine and other industries.

④ Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.

Label Production Requirements

1. The gap between the label and the label is 2-3mm;

2. The distance between the label and the edge of the bottom paper is 2mm;

3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);

4. The inner diameter of the core is 76mm, and the outer diameter is less than 280mm, arranged in a single row.

The above label production needs to be combined with your product. For specific requirements, please refer to the results of communication with our engineers!

811

Technical Parameters:

Parameter	Date
Label Specification	Adhesive sticker,transparent or opaque
Labeling Tolerance	±0.5mm
Capacity(pcs/min)	40~80
Suit product size(mm)	L:40~400 W:20~200 H:0.2~150;Can be customized
Suit label size(mm)	L:15-200;W(H):15-130
Machine Size(LWH)	≈19306951390(mm)
Pack Size(LWH)	≈19507301450(mm)
Voltage	220V/50(60)HZ;Can be customized
Power	1030W
N.W(KG)	≈195.0
G.W(KG)	≈360.0
Label Roll	ID:Ø76mm; OD:≤260mm

811 3
811 2

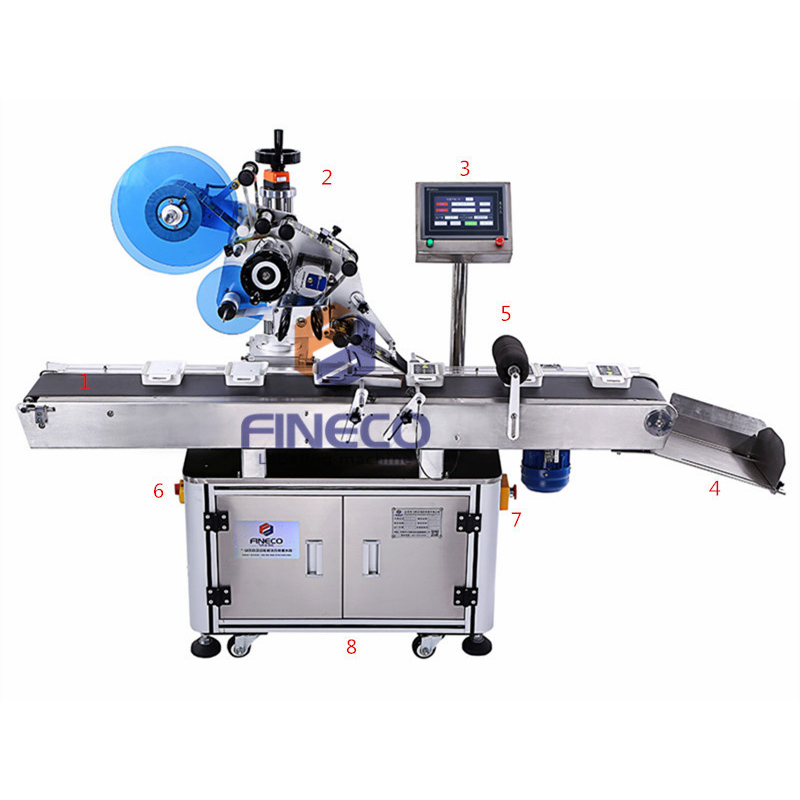

No.	Structure	Function
1	Conveyor	Transmit product
2	Labeling Head	Core of the labeler,including label-winding and driving structure
3	Touch Screen	Operation and setting parameters
4	Collection Plate	Collect the labeled products
5	Strengthening Sponge Roller	Press labeled product to strengthen labeling
6	Main Switch	Open the machine
7	Emergency Stop	Stop the machine if it runs wrong
8	Electric Box	Place electronic configurations

Features:

1 ) Control System:Japanese Panasonic control system , with high stability and extremely low failure rate.

2 ) Operation System:Color touch screen , directly visual interface easy operation.Chinese and English available . Easily to adjust all electrical parameters and have counting function , which is helpful for production management.

3) Detection System:Using German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor , which are sensitive to label and product , thus ensure high accuracy and stable labeling performance . Greatly saves labor .

4) Alarm Function : The machine will give an alarm when problem occur , such as label spill , label broken , or other malfunctions .

5) Machine Material : The machine and spare parts all use material stainless steel and anodized senior aluminum alloy , with high corrosion resistance and never rust .

6) Equip with a voltage transformerto adapt to local voltage.

contact information

FAQ

Q: Are you the factory?

A: We are Manufacturer located in Dongguan,China.Specialized in labeling machine and packaging industry for more than 10 years,have thousands of customer cases,welcome for factory inspection.

Q:How to make sure your labeling quality is good?

A:We are using strong and durable mechanical frame and premium electronic parts such as Panasonic,Datasensor,SICK…to make sure stable labeling performance.What’s more,our labelers approved CE and ISO 9001 certification and have patent certificates.Besides,Fineco was awarded Chinese“New High-Tech Enterprise” in 2017.

Q:How many machines your factory have?

A:We produce standard and custom-made adhesive labeling machine.By automation grade,there are semi automatic labelers and automatic labeler;By product shape,there are round products labelers,square products labelers,irregular products labelers,and so on.Show us your product, labeling solution will be provided accordingly.

Q:What’s your quality assurance terms?

Fineco strictly implement responsibility of the post,

1)When you confirm order,the design department will send the final design for your confirmation before production.

2)The designer will follow the processing department to ensure each mechanical parts are processed correctly and timely.

3)After all parts done,designer transfer responsibility to the Assembly Dept,which need to assemble the equipment on time.

4)Responsibility transferred to Adjustment Dept with the assembled machine.Sales will check the progress and feedback to customer.

5)After customer’s video checking/factory inspection,sales will arrange the delivery.

6)If customer have problem during application,Sales will ask the After-sales Dept to solve it together.

Q:Confidentiality Principle

A:We will keep All Our Clients’ Design,Logo,and Sample on our archives,and never show to the similar clients.

Q: Is there any installation direction after we received the machine?

A: Generally you can apply the labeler directly once receive it,because we have adjust it well with your sample or similar products.Besides,instruction manual and videos will be provided.

Q: What label material does your machine use ?

A: Self-adhesive sticker.

Q: Which kind of machine can meet my labeling requirement?

A:Pls supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.

Q:Is there any insurance to guarantee that I will get the right machine I pay for?

A:We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection, on-time shipment protection and 100% safe payment protection.

Q:How could I get the spares of machines?

A:Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
