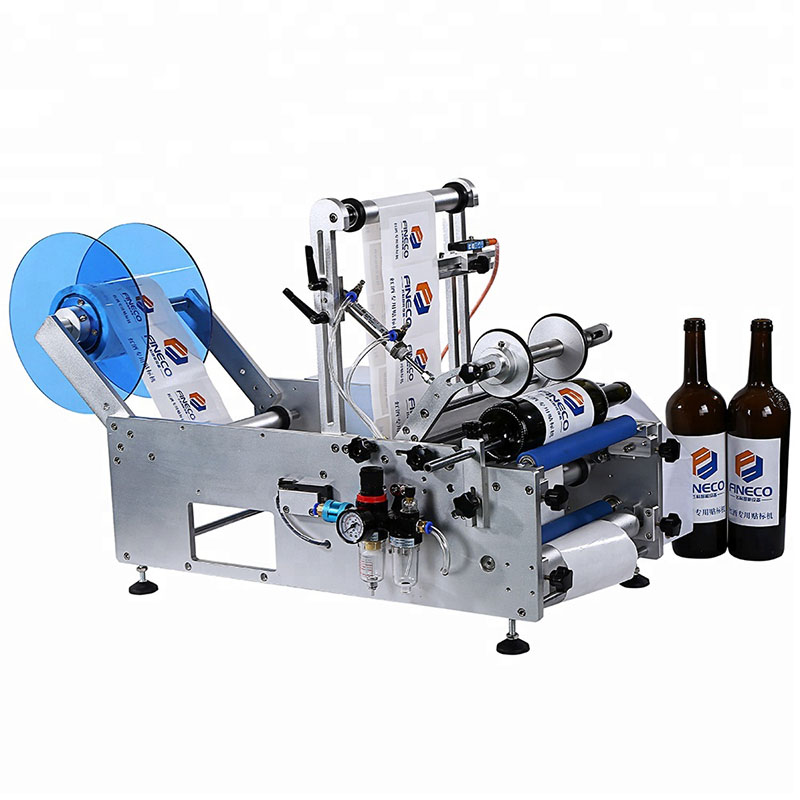

FK603 Semi-Automatic Round Bottle Labeling Machine

Machine Description

FK603 has additional functions to add options:

1. Add the positioning labeling function, so that the label can be attached to a fixed position of your product.

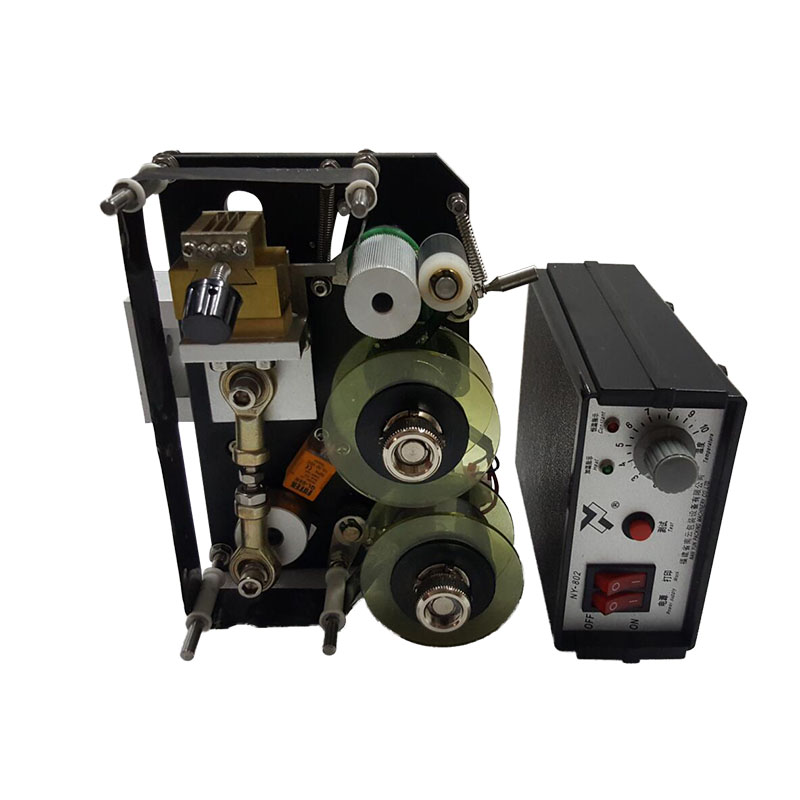

2. Equipped with a coding machine or inkjet printer, the production batch number, production date, effective date and other information are printed clearly when labeling, and the coding and labeling are carried out at the same time to improve efficiency.

FK603 adjustment method is simple and only needs to move the height of the pressure roller and the width of the hole where the product is placed. The adjustment process is less than 5 minutes, and the labeling accuracy is high. It is difficult to see the error with the naked eye. FK603 covers an area of approximately 0.22 cubic meters. Support custom labeling machine according to the product.

Technical Parameters

Structures:

Work Process

Working Principle: The core of the machine is PLC, which receives start and detect signals and output signals to start the automatic magnetic clutch,the electromagnetic valve, and the motor.

Operation process: put the product—press the foot switch—label (automatically realized by the equipment)—take out the labeled product.

Label Production Requirements

1. The gap between the label and the label is 2-3mm;

2. The distance between the label and the edge of the bottom paper is 2mm;

3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);

4. The inner diameter of the core is 76mm, and the outer diameter is less than 300mm, arranged in a single row.

The above label production needs to be combined with your product. For specific requirements, please refer to the results of communication with our engineers!

Features:

1) Control System: Japanese Panasonic control system, with high stability and extremely low failure rate.

2) Operation System: Color touch screen, directly visual interface easy operation. Chinese and English available. Easily to adjust all electrical parameters and have counting function, which is helpful for production management.

3) Detection System: Using German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor, which are sensitive to label and product , thus ensure high accuracy and stable labeling performance. Greatly saves labor.

4) Alarm Function: The machine will give an alarm when problem occur, such as label spill, label broken, or other malfunctions.

5) Machine Material: The machine and spare parts all use material stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.

6) Equip with a voltage transformerto adapt to local voltage.
