Factory best selling Print And Apply Labellers - FK816 Automatic Double Head Corner Labeling Machine – Feibin Featured Image
  • Factory best selling Print And Apply Labellers - FK816 Automatic Double Head Corner Labeling Machine – Feibin

Factory best selling Print And Apply Labellers - FK816 Automatic Double Head Corner Labeling Machine – Feibin

Short Description:

① FK616 is suitable for all kinds of specifications of square, round, flat and curved products labeling, such as packaging boxes, round bottles, cosmetic flat bottles, curved boards.

② FK616 can achieve full coverage labeling, partial accurate labeling, double labeling on the front and back of the product, double labeling on the front and side of the product, the use of double labeling function, you can adjust the distance between the two labels, widely used in packaging, electronic products, cosmetics, packaging materials industries.

7(2)11(2)IMG_2803IMG_3630


Product Detail

Product Tags

Related Video

Feedback (2)

We can constantly satisfy our respected customers with our good high quality, good price tag and good support due to we have been additional specialist and extra hard-working and do it in cost-effective way for Transparent Sticker Labeling Machine, Aluminium Foil Bag Labeling Machine, Product Sticker Printing Machine, To improved expand market, we sincerely invite ambitious individuals and providers to hitch as an agent.
Factory best selling Print And Apply Labellers - FK816 Automatic Double Head Corner Labeling Machine – Feibin Detail:

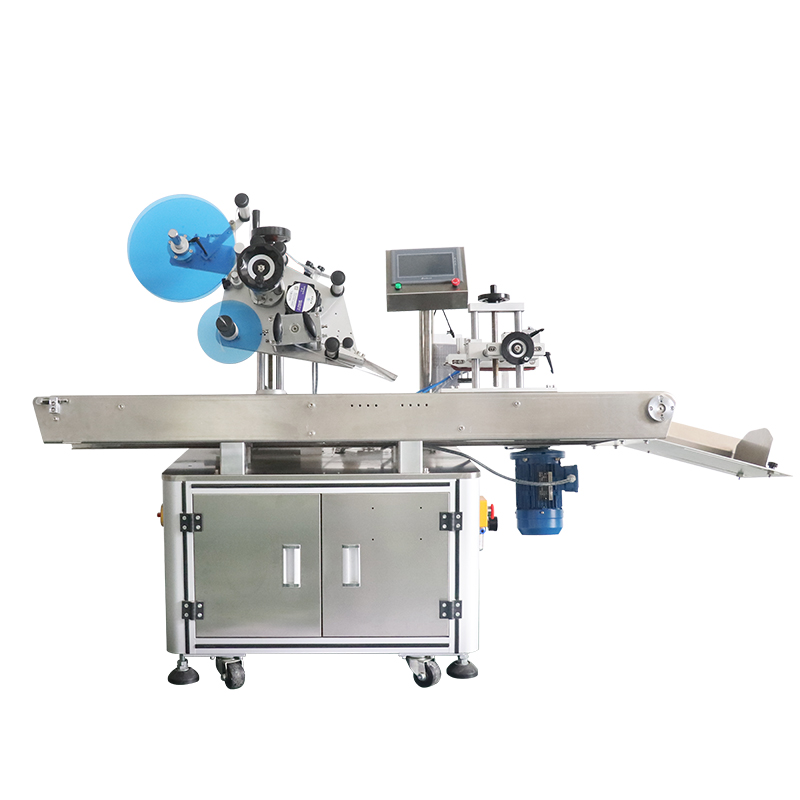

FK816 Automatic Double Head Corner Labeling Machine


815

Machine Description:

4. Automatic material collection function (combined with product consideration);

5. Increase labeling device;

④ FK816 Adjust method is simple: 1.Adjust the height of the labeling mechanism, make the labeling knife edge higher 2mm than product height and at the same level. 2.Adjust the top conveyor belt, bottom conveyor belt and labeling speed on the touch screen so that they want to match. 3. Adjust the position of the sensor so that each label can be completely run out. 4.Adjust the height of the roller, let roller slight touch the labeling surface of the product. 5.Adjust the position of the brush, make the brush just in touch with the labeling surface of the product.

⑤ FK816 floor space about 2.35 stere.

⑥ Machine Support Customization.

The FK816 Double Head Corner labeling machine has simple adjustment methods, high labeling accuracy and good quality, Applicable to the requirements of high precision, high output products, and it is difficult to see the error with the naked eye.

Working Principle:

1. Click star on the touch screen.

2. The product placed next to the guardrail, then the conveyor belt moves the products forward.

3. When the sensor detects that the products has reached target location,the machine will send out the label and the roller attaches the half of the label to the product.

4. Then when the product is labeled and reached a certain position, the brush will pop out and brushes the others half of the label onto the product, achieve corner labeling.

Label Specification:

① Applicable labels: sticker label, film, electronic supervision code, bar code.

② Applicable products: Products that are required to be labeled on flat, arc-shaped,round, concave, convex or other surfaces.

③ Application industry: Widely used in cosmetics, food, toys, chemical, electronics, medicine and other industries.

④ Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.

Label Production Requirements

1. The gap between the label and the label is 2-3mm;

2. The distance between the label and the edge of the bottom paper is 2mm;

3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);

4. The inner diameter of the core is 76mm, and the outer diameter is less than 280mm, arranged in a single row.

The above label production needs to be combined with your product. For specific requirements, please refer to the results of communication with our engineers!

Technical Parameters:

Parameter Date
Label Specification Adhesive sticker,transparent or opaque
Labeling Tolerance ±0.5mm
Capacity(pcs/min) 40~100
Suit product size(mm) L:20~300 W:20~250 H:10~100;Can be customized
Suit label size(mm) L:15-200;W(H):15-130
Machine Size(L*W*H) ≈1450*1250*1330(mm)
Pack Size(L*W*H) ≈1500*1300*1380(mm)
Voltage 220V/50(60)HZ;Can be customized
Power 1470W
N.W(KG) ≈220.0
G.W(KG) ≈400.0
Label Roll ID:Ø76mm; OD:≤260mm
Product detail pictures:

Factory best selling Print And Apply Labellers - FK816 Automatic Double Head Corner Labeling Machine – Feibin detail pictures
