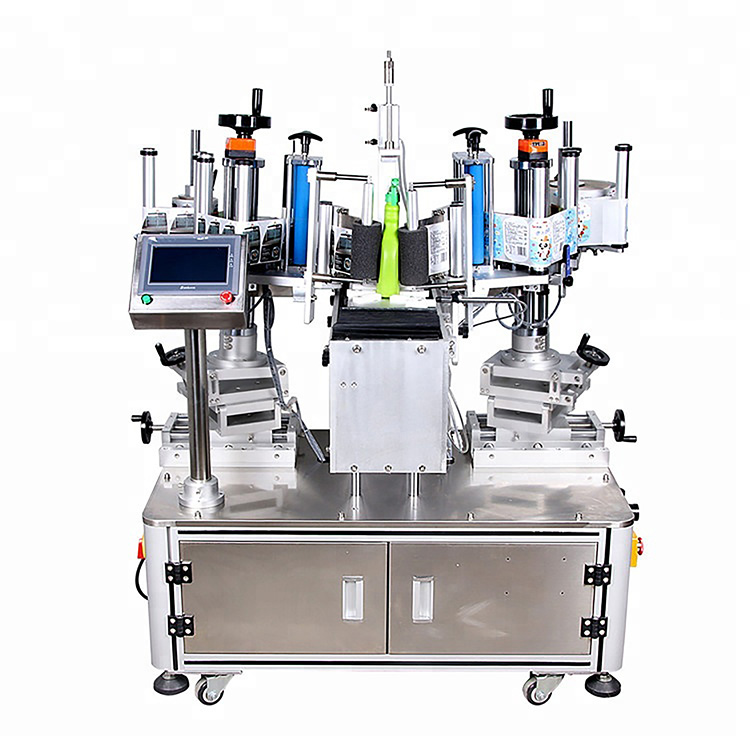

FK909 Semi Automatic Double-sided Labeling Machine

Machine Description:

FK909 semi-automatic labeling machine has additional functions that can be added to the options: optional color band coding machine is added to the label head, and the production batch, production date and expiration date are printed at the same time. Reduce packaging process, greatly improve production efficiency, special label sensor.

FK909 semi-automatic labeling machine has simple adjustment method, high labeling accuracy of ±0.5mm, good quality, and it is difficult to see the error with the naked eye.

FK909 semi-automatic labeling machine covers an area of about 0.35 cubic meters

Support custom labeling machine according to the product.

Working Principle:

This part of the principle for our own research and development, if interested, welcome to consult.

Label Specification:

1. Feeding: Put product on the fixture.

2. Transmission: the conveyor sends the product forward and backward.

3. The product sensor sends product signal and PLC outputs labeling signal.

4. Labeling.

5. Strengthening: the sponge on the 2 sides press the labels to make they stick tighter.

6. Collection: Get the ready labeled product Out.

Label Production Requirements

1. The gap between the label and the label is 2-3mm;

2. The distance between the label and the edge of the bottom paper is 2mm;

3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);

4. The inner diameter of the core is 76mm, and the outer diameter is less than 280mm, arranged in a single row.

The above label production needs to be combined with your product. For specific requirements, please refer to the results of communication with our engineers!

Technical Parameters:

◆ Labeling accuracy (mm): ±0.5mm(errors caused by product and label are not concerned)

◆ Labeling speed (pcs / min):15～30pcs/min(influenced by the size of the product and label)

◆ Applicable Product Diameter:L:20mm～200mm；W:20mm～150mm；H:0.2mm～120mm(We can make it according to your sample diameter)

◆ Suitable label size(mm) :length : 15mm～100mm；Width:15mm～110mm

◆ Applicable power supply:220V/50HZ

◆ Weight (kg): about 150kg

◆ Applicable standard roll Inner diameter (mm): φ76mm

◆ Applicable standard roll Outer diameter (mm): φ300mm

◆ Power(W): 990W

◆ Device dimensions (mm) (L × W × H): about 1300mm × 1200mm ×1400mm
